Stranded Loose Tube Light-armored Cable (GYTS)
Overview

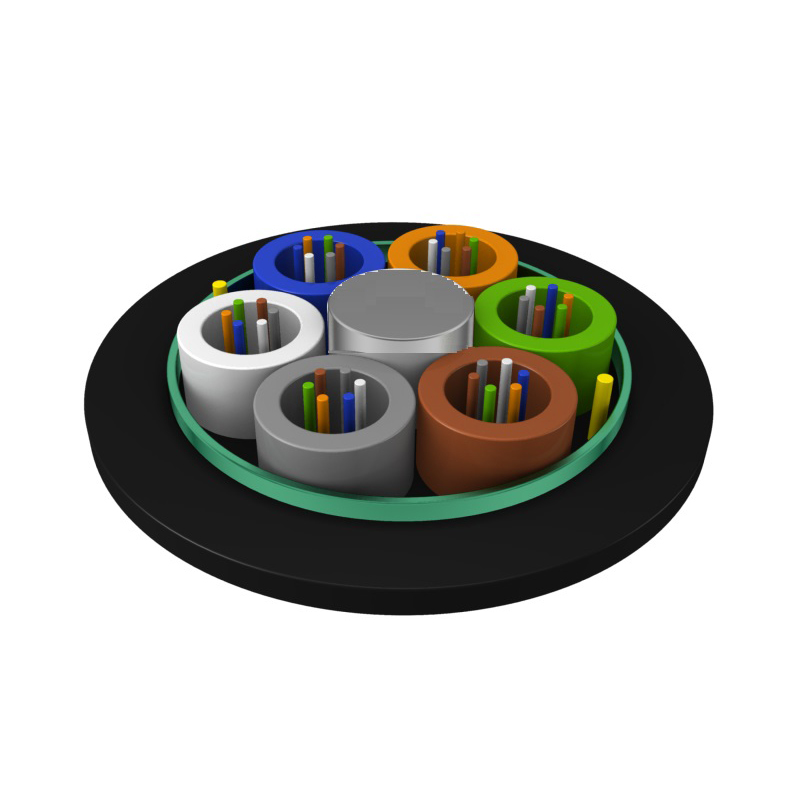

The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.
Key Features
- Good mechanical and temperature performance
- High strength loose tube that is hydrolysis resistant
- Special tube filling compound ensure a critical protection of fiber
- Specially designed compact structure is good at preventing loose tubes from shrinking
- Crush resistance and flexibility
- PE sheath protects cable from ultraviolet radiation
- The following measures are taken to ensure the cable watertight:
Steel wire used as the central strength member
Loose tube filling compound
100% cable core filling
PSP enhancing moisture-proof
Standards
- IEC 60794-1
Applications
- Duct
- Aerial
- Direct buried
Specifications
General Specifications
|
Fiber Count |
Cable Diameter (mm) |
Max Fibers per Tube |
Stranded Units |
Cable Weight (kg/km) |
|
|
2-30 |
10.0 |
6 |
5 |
110 |
|
|
32-36 |
10.7 |
6 |
6 |
132 |
|
|
38-60 |
11.4 |
12 |
5 |
139 |
|
|
62-72 |
12.0 |
12 |
6 |
165 |
|
|
74-96 |
13.8 |
12 |
8 |
204 |
|
|
98-120 |
15.3 |
12 |
10 |
240 |
|
|
122-144 |
17.0 |
12 |
12 |
284 |
|
|
146-216 |
17.1 |
12 |
18 (2 layers) |
285 |
|
|
218-288 |
19.5 |
12 |
24 (2 layers) |
350 |
|
Note: Storage/Operating Temperature: -40℃ to +70℃, customized cable structure is available
Mechanical Specifications
|
Fiber Count |
Tensile Strength (N) |
Crush Resistance (N/100mm) |
Bending Radius (mm) |
|||
|
Short Term |
Long Term |
Short Term |
Long Term |
Dynamic |
Static |
|
|
2-30 |
1500 |
600 |
1000 |
300 |
20D |
10D |
|
32-36 |
1500 |
600 |
1000 |
300 |
20D |
10D |
|
38-60 |
1500 |
600 |
1000 |
300 |
20D |
10D |
|
62-72 |
1500 |
600 |
1000 |
300 |
20D |
10D |
|
74-96 |
2000 |
600 |
1000 |
300 |
20D |
10D |
|
98-120 |
2000 |
600 |
1000 |
300 |
20D |
10D |
|
122-144 |
2500 |
600 |
1000 |
300 |
20D |
10D |
|
146-216 |
2500 |
600 |
1000 |
300 |
20D |
10D |
|
218-288 |
3000 |
600 |
1000 |
300 |
20D |
10D |
