Uni-tube Light-armored Cable (GYXTW)
Overview

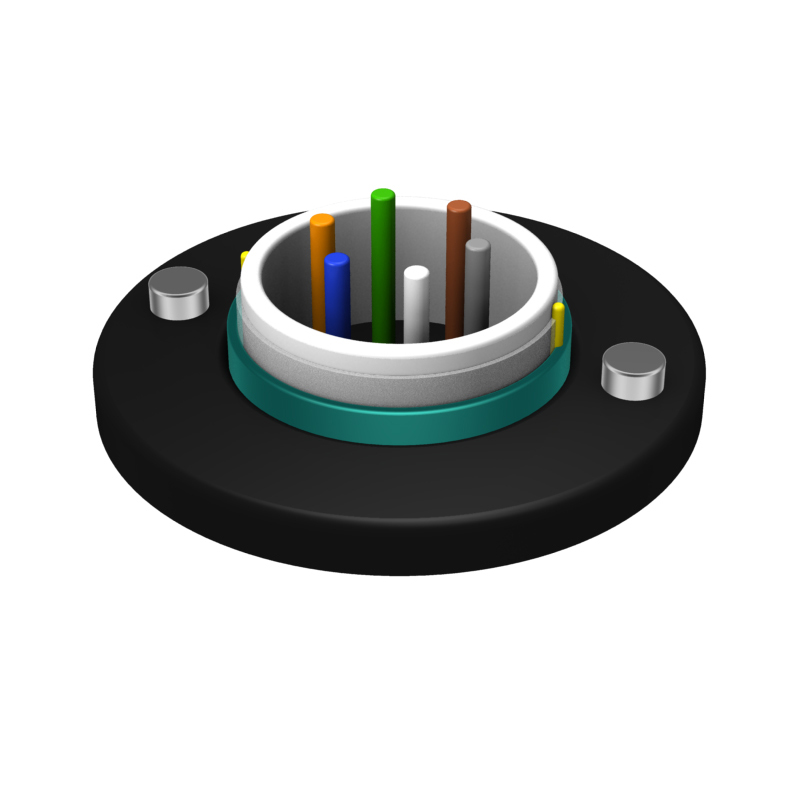

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.
Key Features
- Good mechanical and temperature performance
- High strength loose tube that is hydrolysis resistant
- Special tube filling compound ensure a critical protection of fiber
- Crush resistance and flexibility
- PSP enhancing moisture-proof
- Two parallel steel wires ensure tensile strength
- Small diameter, light weight and friendly installation
- Long delivery length
Standards
- YD/T 769
- IEC 60794-1
Applications
- Duct
- Aerial
Specifications
|
Fiber Count |
Cable Diameter (mm) |
Tensile Strength (N) |
Tensile Strength (N) |
Bending Radius (mm) |
Cable Weight (kg/km) |
|||
|
Short Term |
Long Term |
Short Term |
Long Term |
Dynamic |
Static |
|||
|
2-12 |
9.4 |
1500 |
600 |
1000 |
300 |
20D |
10D |
95 |
|
14-24 |
10.6 |
1500 |
600 |
1000 |
300 |
20D |
10D |
105 |
Note: Storage/Operating Temperature: -40℃ to +70℃, customized cable structure is available
