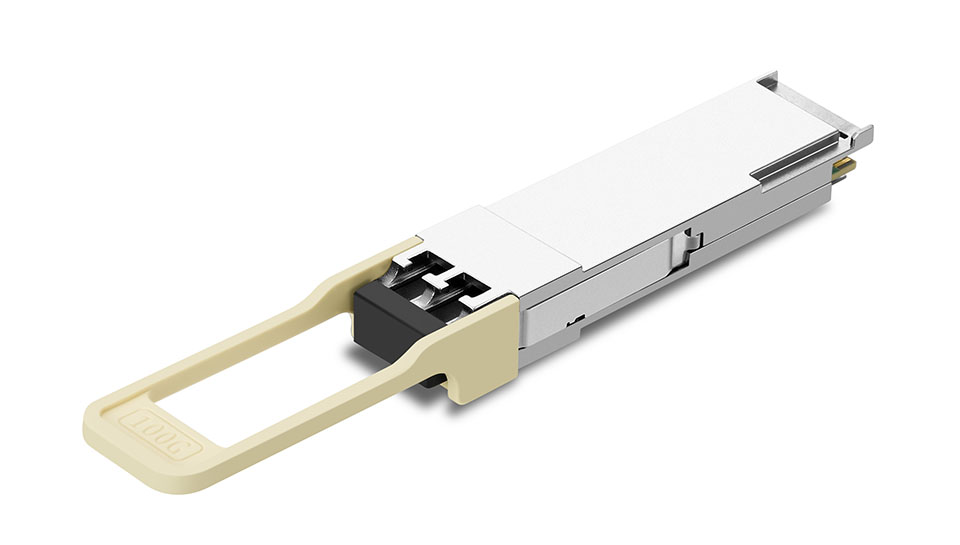

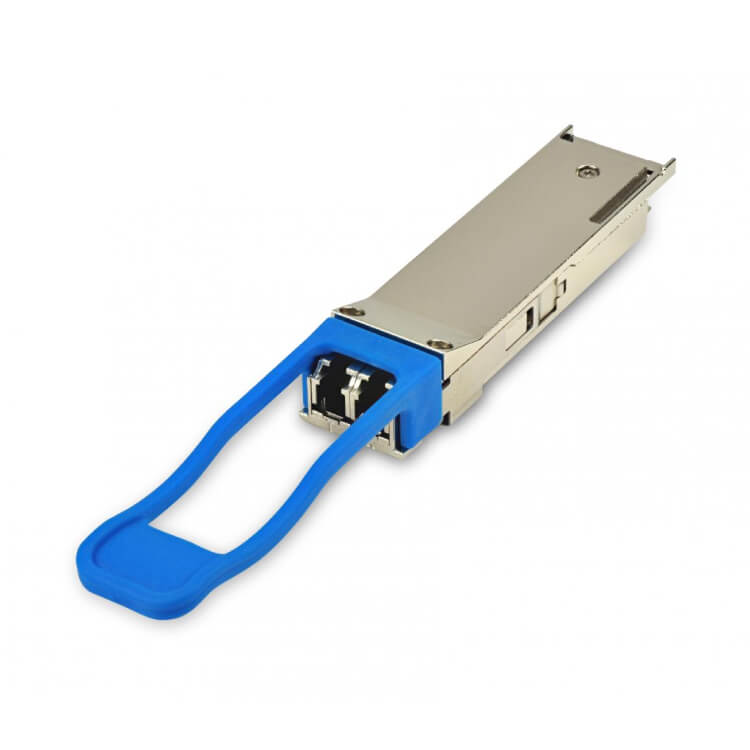

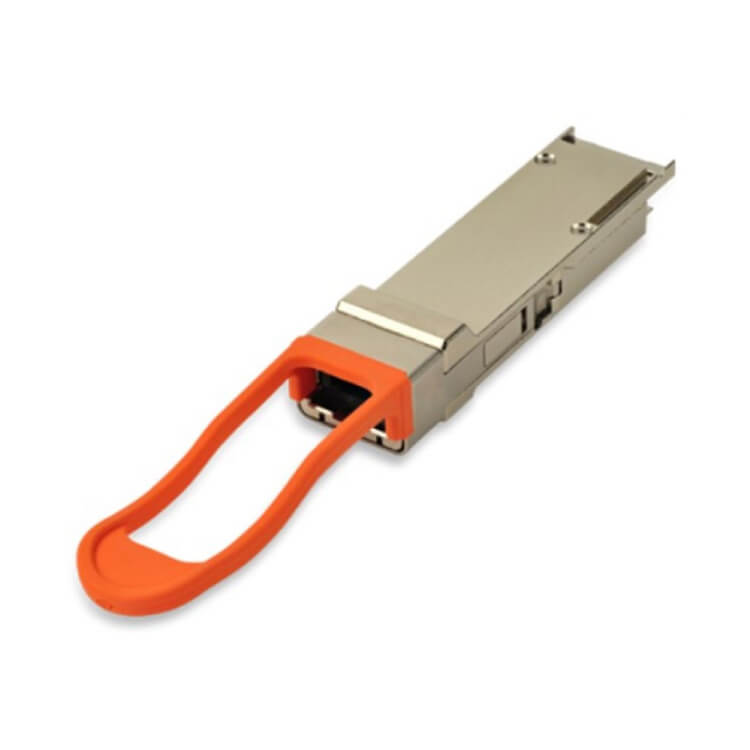

40G QSFP+ Transceivers
Overview
Our 40G QSFP+ transceiver modules are designed for use in 40 Gigabit Ethernet links over Multimode Fiber (MMF) or Single Mode Fiber (SMF). They are compliant with the QSFP+ MSA and IEEE 802.3ba. Module-level digital diagnostic functions are available via I2C interface, as specified by the QSFP+ MSA. They are compatible with different third-party vendors’ switches/routers/servers, etc. And they support dual data rate of 40Gbps and various transmission distance.
Features
- Four-channel full-duplex transceiver module
- Supports 41.25Gbps aggregate bit rate
- Single 1×12 MPO receptacle
- Duplex LC receptacles
- Compatible with third-party (such as Cisco, Huawei, Juniper, H3C etc.) equipment
- Link length up to 100m over OM3 Multimode Fiber (MMF)
- Link length up to 10km/40km/60km over Single Mode Fiber (SMF)
- Hot-pluggable capability
- Built-in digital diagnostic functions
- Low power consumption
- Single +3.3V power supply
- Operating case temperature: -5℃ to +70℃
Standards
- QSFP MSA
- IEEE 802.3ba
- RoHS
Applications
- 40 Gigabit Ethernet
- InfiniBand
- 40G Telecom connections
Specifications
|
Part Number |
Description |
Reach |
Laser |
Power Consumption (Max) |
Temperature |
DDMI |
|
T40G-QSFP-85SR4CD |
40G QSFP+ SR4 |
100m |
850nm VCSEL |
1.5W |
-5~70℃ |
Yes |
|
T40G-QSFP-13LR4CD |
40G QSFP+ LR4 |
10Km |
DFB CWDM |
3.5W |
-5~70℃ |
Yes |
|
T40G-QSFP-13ER4CD |
40G QSFP+ ER4 |
40Km |
DFB CWDM |
4.5W |
-5~70℃ |
Yes |
