100G QSFP28 Transceivers
Overview

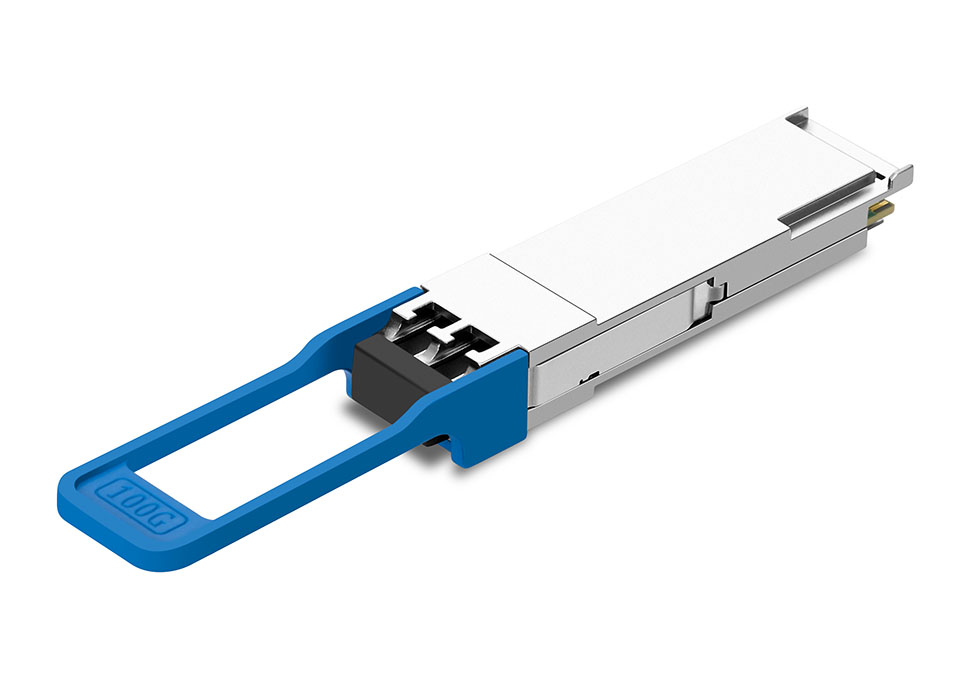

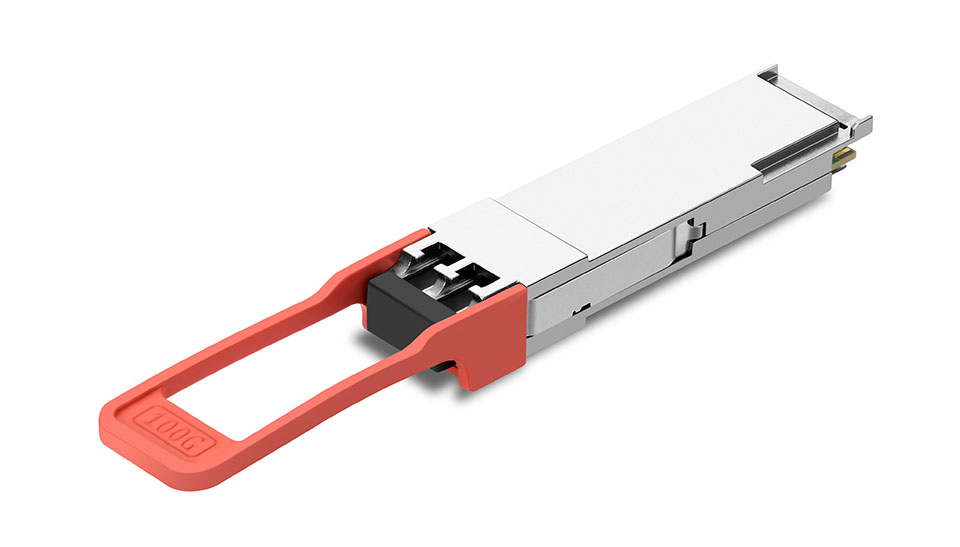

Our 100G QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links over Multimode Fiber (MMF) or Single Mode Fiber (SMF). They are compliant with the QSFP28 MSA and IEEE 802.3bm. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA. They are compatible with different third-party vendors’ switches/routers/servers, etc. And they support dual data rate of 100Gbps and various transmission distance.
Features
- Hot-pluggable QSFP28 form factor
- Supports 103.125Gbps aggregate bit rate
- Single MPO12 receptacle
- Duplex LC receptacles
- Compatible with third-party (such as Cisco, Huawei, Juniper, H3C etc.) equipment
- Link length up to 100m over OM4 Multimode Fiber (MMF)
- Link length up to 10km/40km/80km over Single Mode Fiber (SMF)
- 4x25Gb/s DFB-based or EML-based LAN-WDM transmitter
- 4x25G retimed electrical interface
- Built-in digital diagnostic functions
- Low power consumption
- Single +3.3V power supply
- Operating case temperature: -5℃ to +70℃
Standards
- QSFP MSA
- IEEE 802.3ba
- RoHS
Applications
- Data Center
- 100G Ethernet
Specifications
|
Part Number |
Description |
Reach |
Laser |
Power consumption |
Temperature |
DDMI |
|
T100G-QSFP-85SR4CD |
100G QSFP28 SR4 |
100m |
850nm VCSEL |
3.5W |
-5~70℃ |
Yes |
|
T100G-QSFP-13LR4CD |
100G QSFP28 LR4 |
10Km |
DFB-based LAN-WDM |
3.5W |
-5~70℃ |
Yes |
|
T100G-QSFP-13ER4CD |
100G QSFP28 ER4 |
40Km |
EML-based LAN-WDM |
5W |
-5~70℃ |
Yes |
|
T100G-QSFP-13ZR4CD |
100G QSFP28 ZR4 |
80Km |
EML-based LAN-WDM |
6.5W |
-5~70℃ |
Yes |
