Data XPON ONT
Overview
Our dual-mode data XPON Optical Network Terminal (ONT) supports auto-access to EPON/GPON OLT. The ONT automatically switches into the corresponding PON mode by identifying the local OLT mode to complete GPON/EPON adaptive access.
It features high-performance forwarding capabilities to ensure excellent experience of data and High Definition (HD) video services. It also has good third-party compatibility to work with the third-party OLT, such as Huawei/ZTE/Nokia/FiberHome. It provides a perfect terminal solution and future-oriented service supporting capabilities for all-optical access deployment.
Network Topology
Application Scenarios
- FTTX: FTTO, FTTD, FTTH
- POL: Campus, Enterprise, Video Surveillance, Industry Park
Features
|
|
|
|
|
Reduce cost |
Improve quality of service |
Accelerate time to market |
|
|
|
Standards
- ITU-T G.984
- IEEE 802.3-2005
Specifications
|
Type |

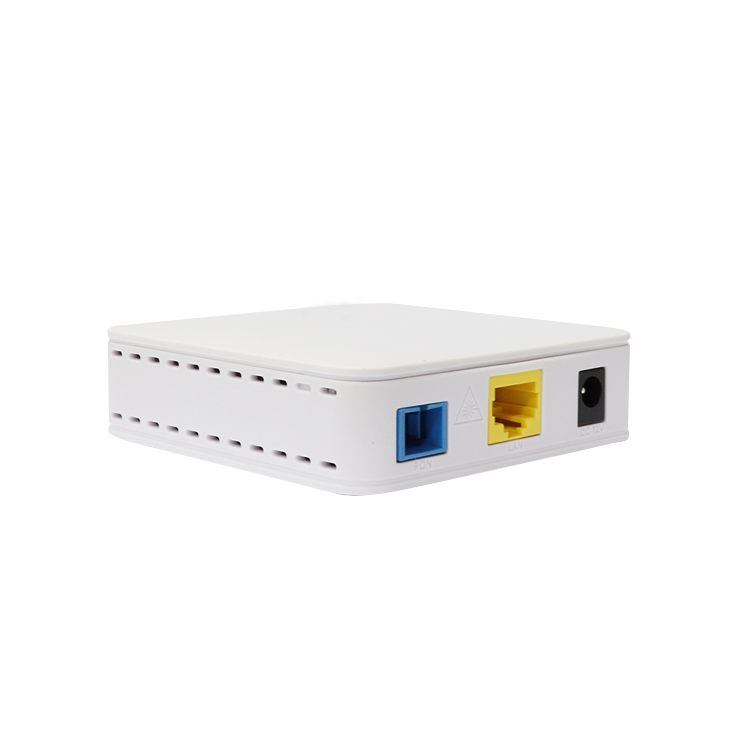

HG4100 |
HG3100H |

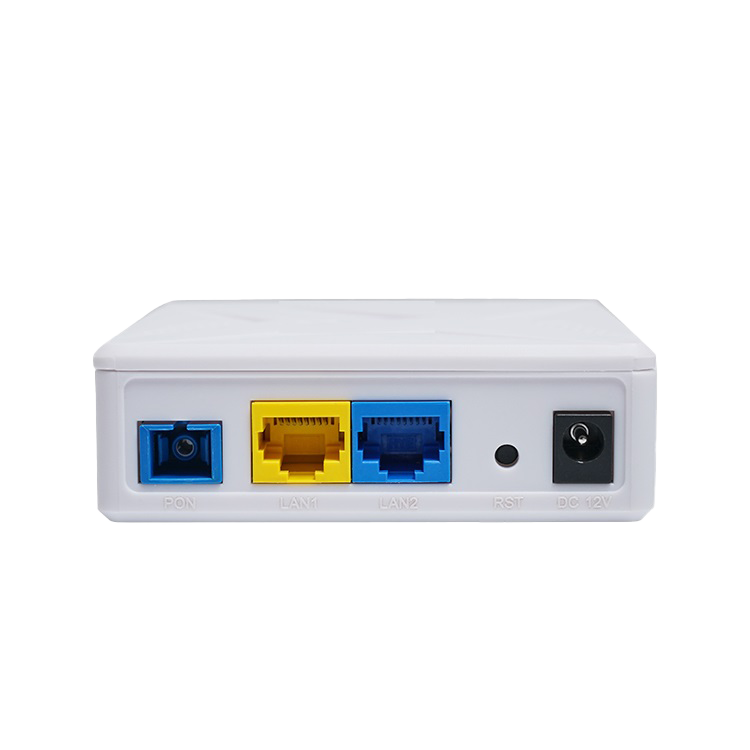

HG4200H |
HG4400L |

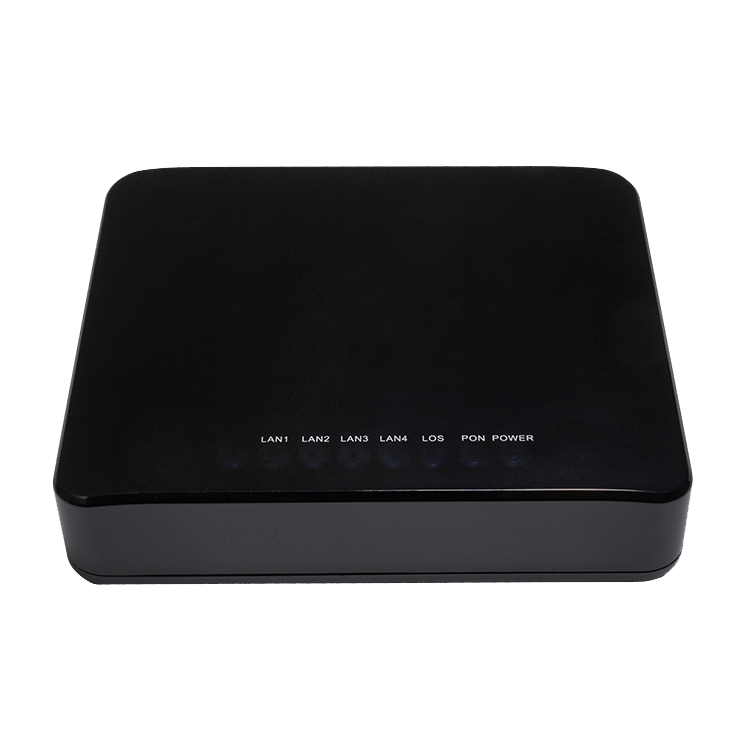

HG4400 |

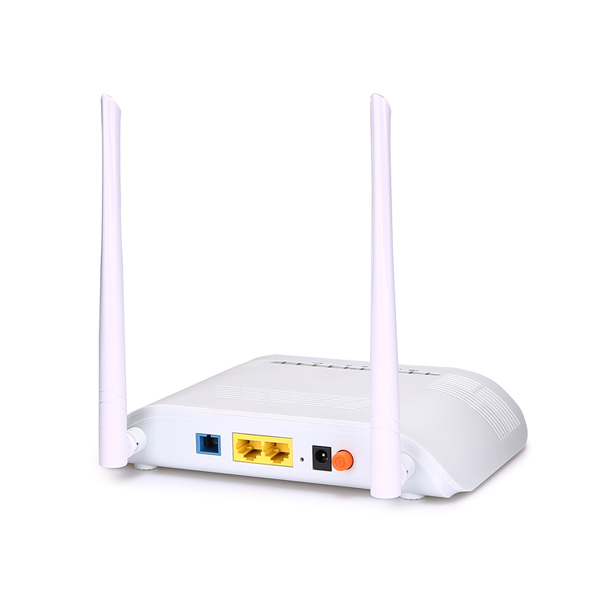

HG4204L |
HG4404L |
|
NNI |
G/EPON |
GPON |
G/EPON |
G/EPON |
G/EPON |
G/EPON |
G/EPON |
|
UNI |
1GE |
2.5GE |
2.5GE+1GE |
1GE+3FE |
4GE |
1GE+1FE+Wi-Fi 4 |
1GE+3FE+Wi-Fi 4 |
|
Dimensions (W*D*H) |
82*82*25mm |
137*83.5*26.5mm |
100*92*29.5mm |
150*115*35mm |
130*110*30mm |
185*120*34mm |
205*140*37mm |
|
Weight |
0.085Kg |
0.13Kg |
0.13Kg |
0.17Kg |
0.17Kg |
0.24Kg |
0.34Kg |
|
Power Supply |
DC:12V/0.5A |
DC:12V/1A |
DC:12V, 1/1.5A |
||||
|
Power Consumption |
≤4W |
≤4W |
≤4W |
≤5W |
≤12W |
≤7W |
≤10W |
|
Operating Temperature |
0⁓+70℃ |
-20⁓+60℃ |
0⁓+50℃ |
||||
|
Operating Humidity |
10%⁓90% RH, non-condensing |
||||||
