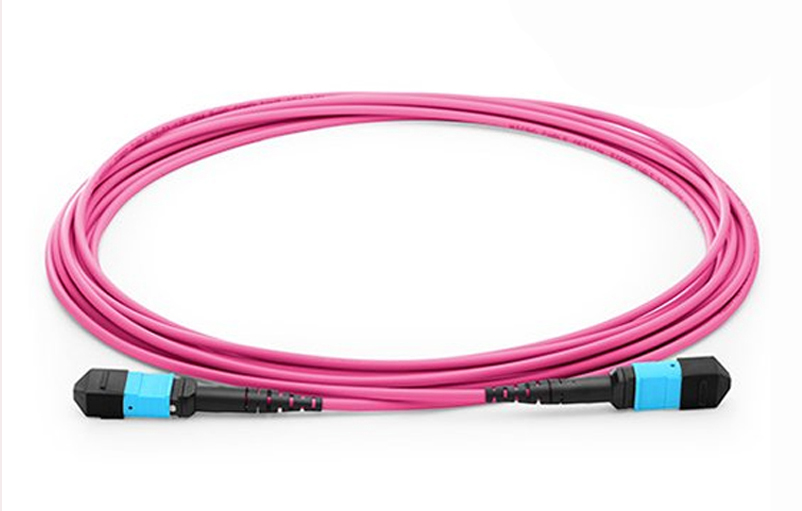

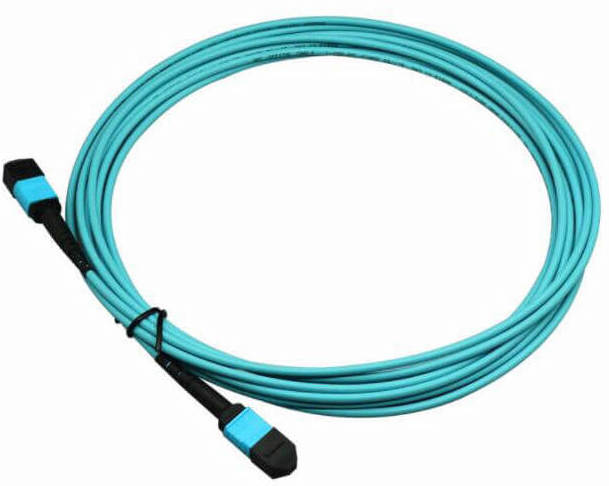

MPO Trunk Cable
Overview
Pre-terminated trunk cable is composed of small size OM3/OM4 optical cable, and 12-core MPO/MTP connectors. This type of plug-and-play pre-terminated cable can be quickly installed to achieve high-performance, high-density fiber connectivity.
Key Features
- High-precision MPO/MTP connector
- Good mechanical performance
- 12 to 144 fibers are available
- Length of cable can be customized
- Factory pre-termination, 100% tested to ensure the transmission performance
- Optional configuration of pulling hooks, easy for field installation
- Rapid configuration, reduce installation time
- Rapid upgrading, support parallel transmission
- Loose tube structure, OFNR, OFNP and LSZH materials are available for outer sheath
Standards
- TIA/EIA 604-5
- IEC 61754
- Telcordia GR-1435-CORE Issue 2
- Telcordia GR-326-CORE Issue 4
Applications
- Infrastructure physical layer connection in data center
- LAN cabling backbone systems
- Backbone connectivity in building and campus.
Specifications
Cable Performance
|
Fiber Type |
Core/Cladding Dia. (µm) |
Bandwidth (MHz •km) |
Wavelength (nm) |
Max. Attenuation (dB/km) |
|
G.652D |
9/125 |
NA |
1310/1550 |
0.36/0.22 |
|
G.657A2 |
9/125 |
NA |
1310/1550 |
0.36/0.22 |
|
OM1 |
62.5/125 |
200 |
850/1300 |
3.0/1.0 |
|
OM2 |
50/125 |
500 |
850/1300 |
3.0/1.0 |
|
OM3 |
50/125 |
2000 |
850/1300 |
3.0/1.0 |
|
OM4 |
50/125 |
4700 |
850/1300 |
3.0/1.0 |
Connector Performance
|
Connector Type |
IL (dB) |
500 times Durability ΔIL (dB) |
Temperature Cycling ΔIL (dB) |
|
MPO/MTP MM Elite |
≤0.35 |
≤0.20 |
≤0.20 |
|
MPO/MTP SM Elite |
≤0.35 |
≤0.20 |
≤0.20 |
|
MPO/MTP MM Standard |
≤0.70 |
≤0.20 |
≤0.20 |
|
MPO/MTP SM standard |
≤0.70 |
≤0.20 |
≤0.20 |
|
LC MM connector |
≤0.30 |
≤0.20 |
≤0.20 |
Mechanical Performance
|
Fiber Count |
Bending Radius (mm) |
Temperature (℃) |
Package |
|||
|
Static |
Dynamic |
Operation |
Installation |
Storage |
||
|
12 |
400 |
20D |
-20 to +60 |
-5 to +50 |
-25 to +75 |
PE bag for L＜50m, |
|
24 |
450 |
20D |
||||
|
48 |
450 |
20D |
||||
|
72 |
450 |
20D |
||||
|
96 |
450 |
20D |
||||
|
144 |
450 |
20D |
||||
