MPO Plug-and-Play Module
Bland MPO Plug-and-Play Modules are high quality cold-rolled steel plate and high density, and they are compatible with different MPO frames.
Overview

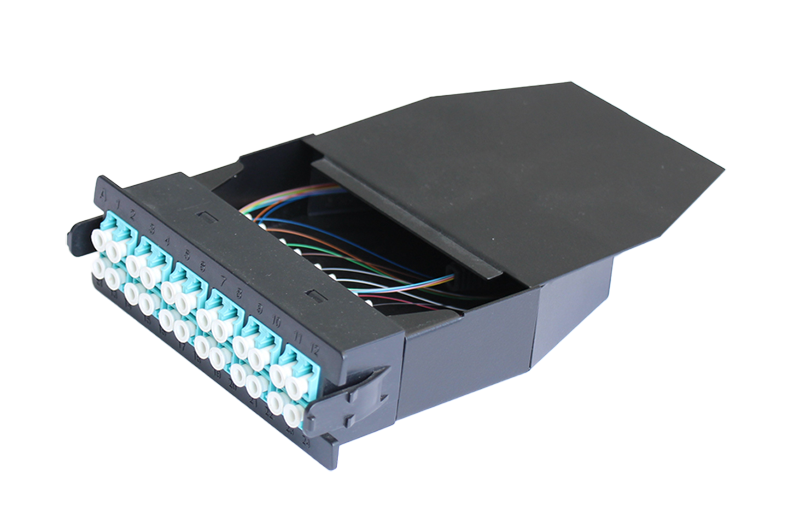

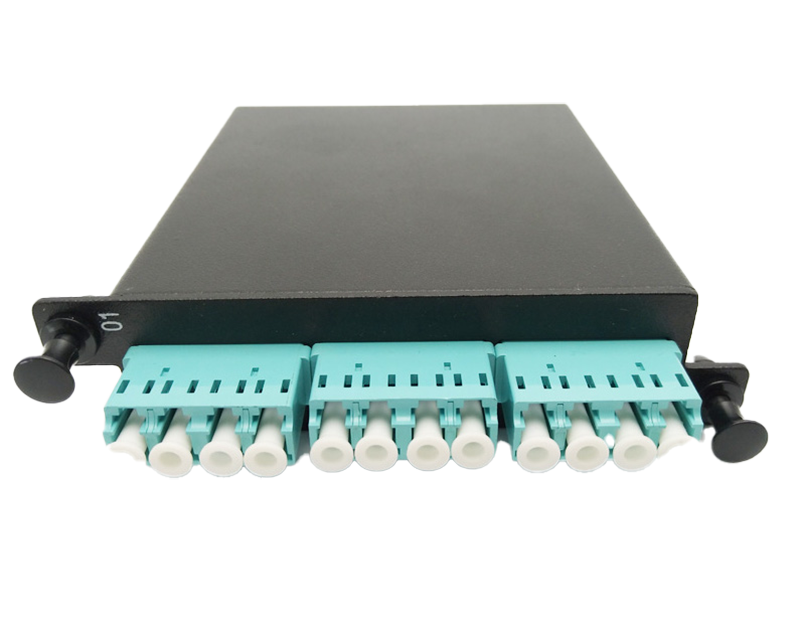

Plug-and-play modules possess optical fiber branching patch cords inside to split the 12-core MPO / MTP connector into simplex or duplex LC connector. Simplex or duplex connectors are placed in front of the modules, and one or two MPO/ MTP connectors are placed at the back of the modules. The branching patch cord connect the front LC and the near MPO/MTP connectors. This type of modules can be easily installed in the optical distribution frames.
Key Features
- Factory pre-termination, 100% tested to ensure the transmission performance
- Modular design, easy for expansion
- Reasonable of optical fiber cable route, minimize structure and ensure fiber bending radius not less than 30mm Rapid configuration, reduce installation time
- Rapid upgrading, support parallel transmission
Standards
- TIA/EIA 604-5
- IEC 61754
- RoHS
Applications
- Modular installation in optical distribution devices, to achieve structured cabling between trunk cables and the distribution area.
Specifications
|
Type |
Size (mm) |
Capacity (Core) |
Material |
Surface Treatment |
|
MM-12SUF-OM3 |
130x35x 100 |
12 |
Cold-rolled steel |
Matt back |
|
MM-12LUF-OM3 |
130x35x 100 |
12 |
Cold-rolled steel |
Matt back |
|
MM-24LUF-OM3 |
130x35x 100 |
24 |
Cold-rolled steel |
Matt black |
