MPO Breakout Cable
Overview

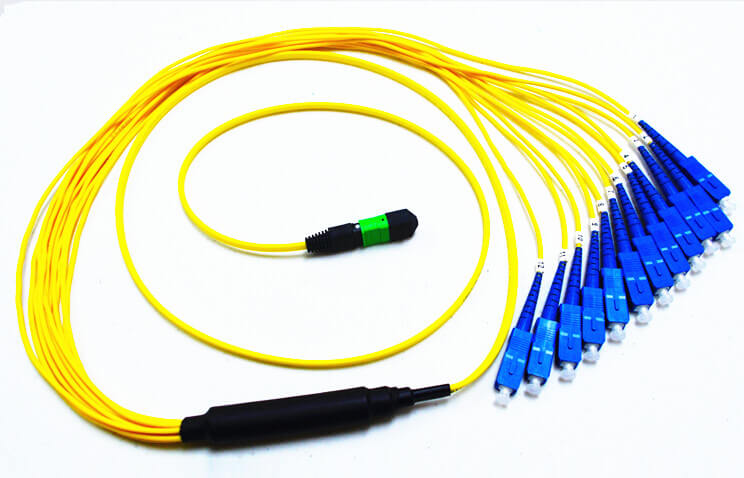

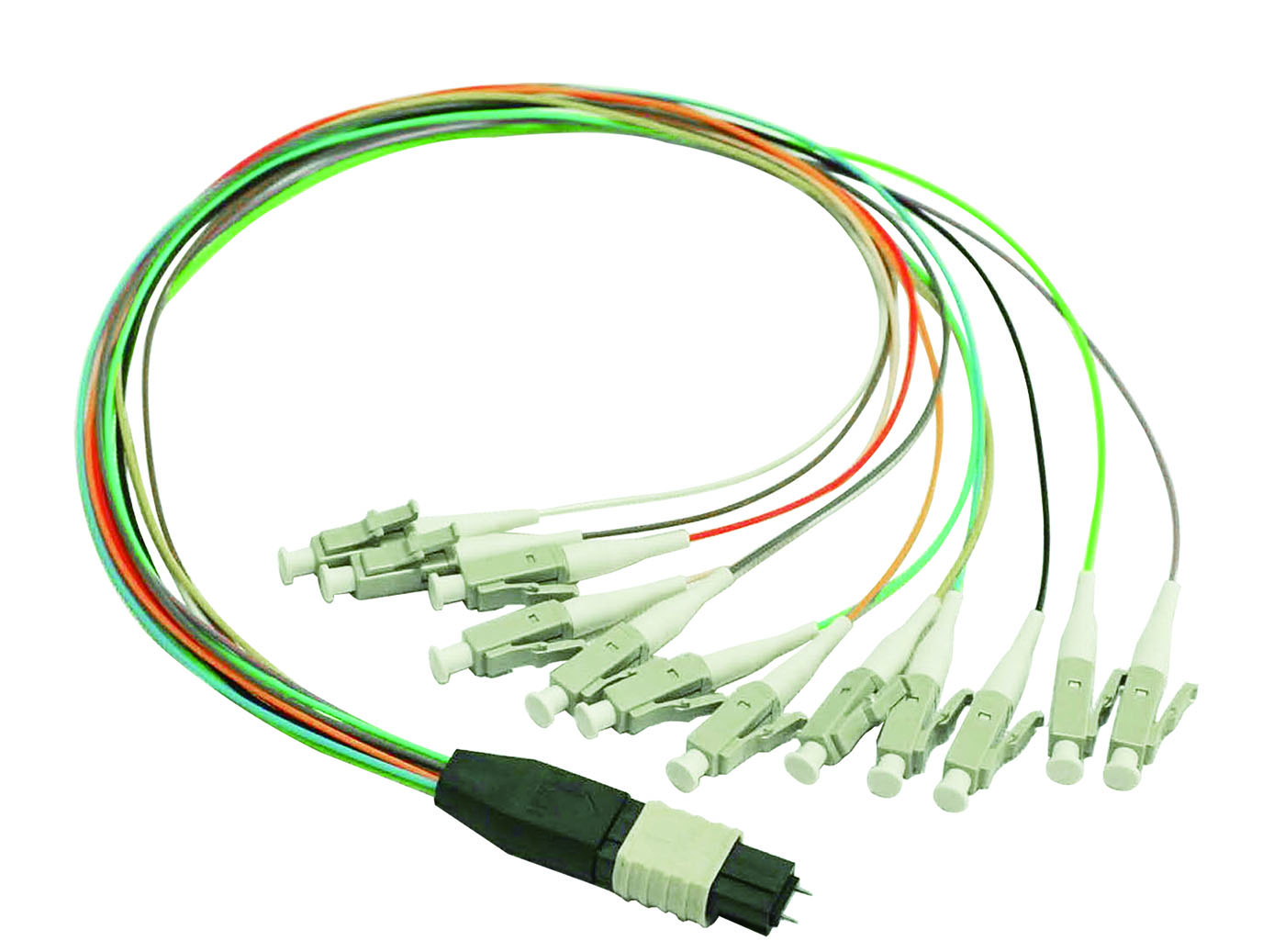

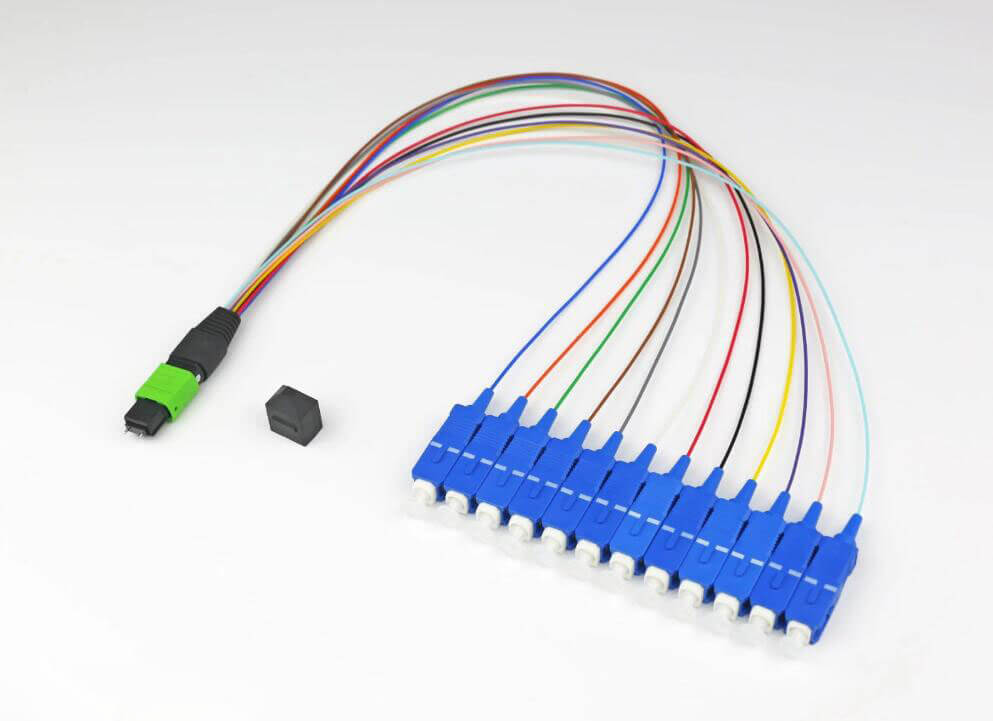

Breakout cable is used to split 12-core MPO/MTP connector terminated on trunk cable into simplex or duplex connectors. MPO/MTP connector is connected with trunk cable, while simplex or duplex connecter on the other side can provide a different fan-out length which is convenient for device connection.
Key Features
- High-precision MPO/MTP connector and simplex/duplex LC/SC
- Factory pre-termination, 100% tested to ensure the transmission performance
- Rapid configuration, reduce installation time
- Rapid upgrading, support parallel transmission
- Customized cable length and fan-out length
- Loose tube structure, OFNR, OFNP and LSZH materials are available for outer sheath
Standards
- TIA/EIA 604-5
- IEC 61754
- Telcordia GR-1435-CORE Issue 2
- Telcordia GR-326-CORE Issue 4
Applications
- Internal frame cabling
- MPO/MTP adapter panels
Specifications
Cable Performance
|
Fiber Type |
Core/Cladding Dia. (µm) |
Bandwidth (MHz •km) |
Wavelength (nm) |
Max. Attenuation (dB/km) |
|
G.652D |
9/125 |
NA |
1310/1550 |
0.36/0.22 |
|
G.657A2 |
9/125 |
NA |
1310/1550 |
0.36/0.22 |
|
OM1 |
62.5/125 |
200 |
850/1300 |
3.0/1.0 |
|
OM2 |
50/125 |
500 |
850/1300 |
3.0/1.0 |
|
OM3 |
50/125 |
2000 |
850/1300 |
3.0/1.0 |
|
OM4 |
50/125 |
4700 |
850/1300 |
3.0/1.0 |
Connector Performance
|
Connector Type |
IL (dB) |
500 times Durability Δ IL(dB) |
Temperature Cycling Δ IL(dB) |
|
MPO/MTP MM Elite |
≤0.35 |
≤0.20 |
≤0.20 |
|
MPO/MTP SM Elite |
≤0.35 |
≤0.20 |
≤0.20 |
|
MPO/MTP MM Standard |
≤0.70 |
≤0.20 |
≤0.20 |
|
MPO/MTP SM standard |
≤0.70 |
≤0.20 |
≤0.20 |
|
LC MM connector |
≤0.30 |
≤0.20 |
≤0.20 |
Mechanical Performance
|
Fiber Count |
Bending Radius (mm) |
Temperature (℃) |
Package |
|||
|
Static |
Dynamic |
Operation |
Installation |
Storage |
||
|
2 |
10D |
20D |
-20 to +60 |
-5 to +50 |
-25 to +75 |
PE bag for L＜50m, |
|
4 |
10D |
20D |
||||
|
6 |
10D |
20D |
||||
|
8 |
10D |
20D |
||||
|
12 |
10D |
20D |
||||
|
24 |
10D |
20D |
||||
