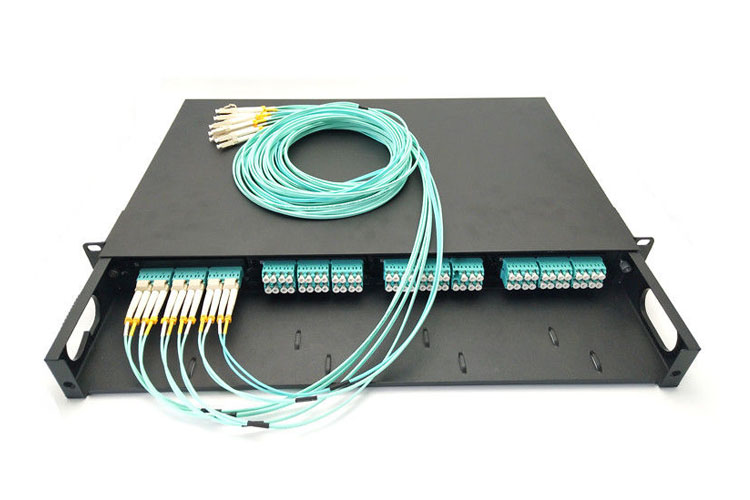

MPO Frame
Bland MPO frames are standard 19-inch installation, high quality cold-rolled steel plate and high density, and they are key products of our data center solutions.
Overview

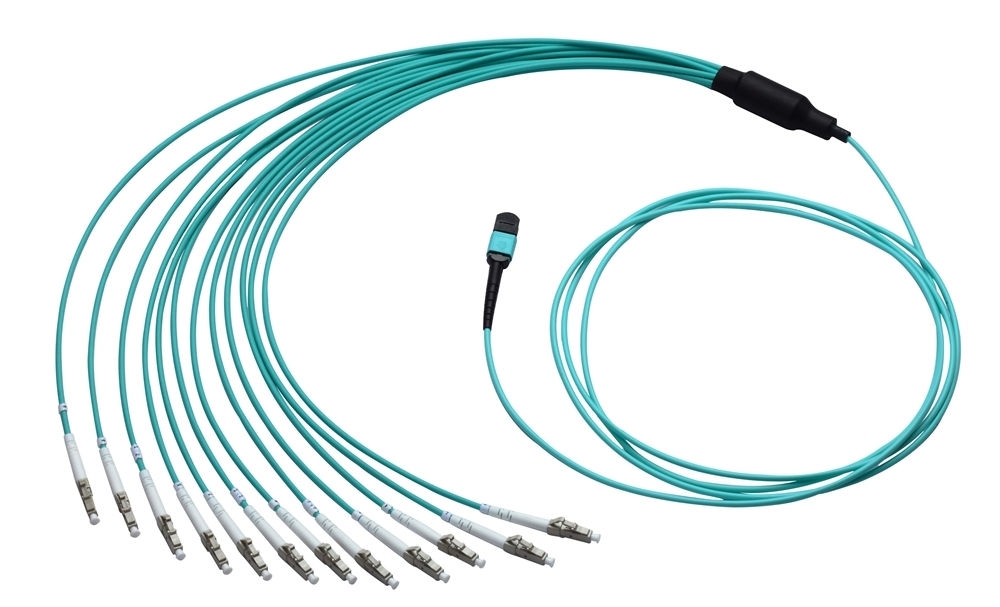

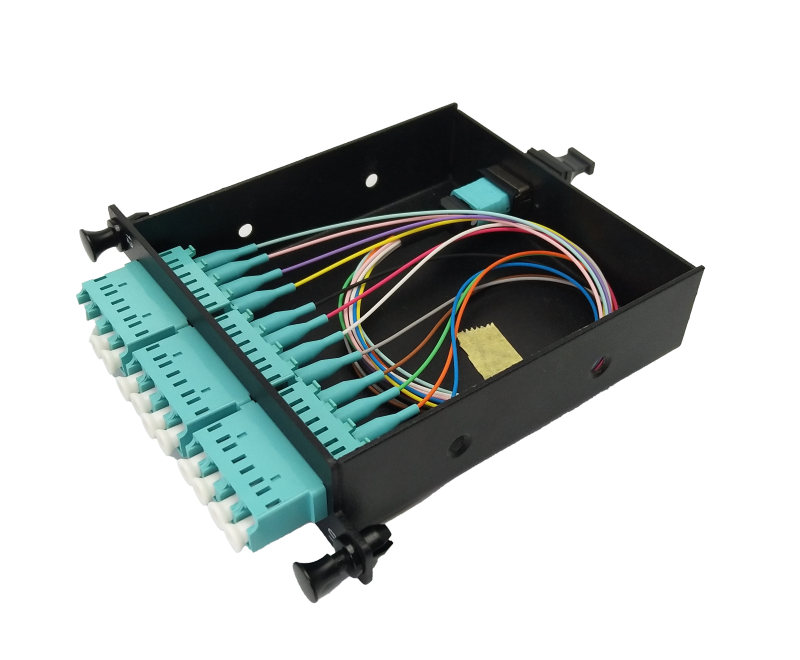

Modular optical distribution frame, provided as a high-density optical distribution frame for data center, can integrate MPO/MTP plug-and-play modules, LC/SC patch cord panel and breakout patch cords. This economical design greatly reduces the number of optical distribution frames in order to save the space occupation.
Key Features
- Modular design, easy for expansion

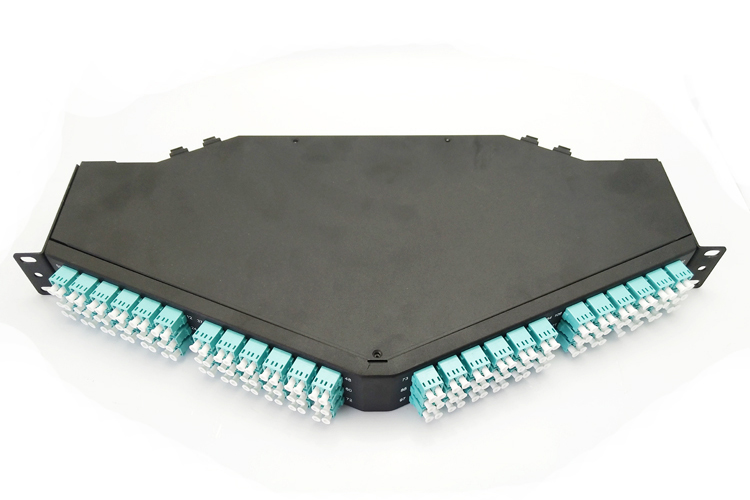

- High-density design, 1/2/4U for 96/144/288-core connections (LC adapter) or 216/864-core connections (MPO/MTP adapter)
- Several optical cable and patch cord entrances, convenient for operation and management
- Extended depth, providing sufficient space for operation

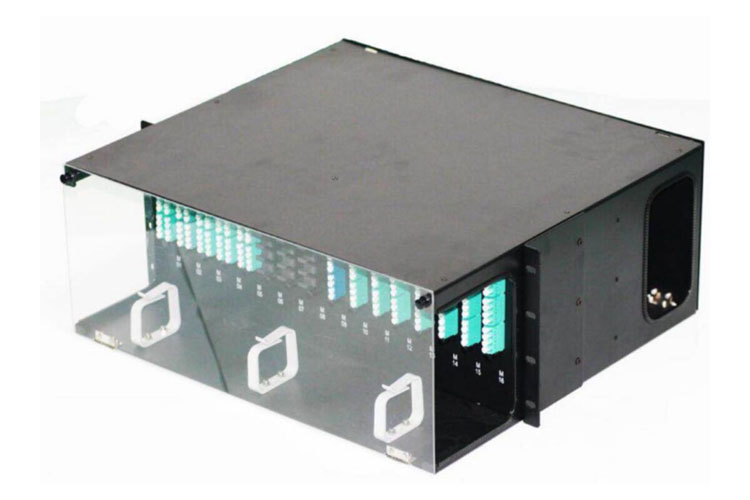

- Durable organic glass front door, convenient for installation and maintenance
- Structures can be customized
Standards
- TIA/EIA 604-5
- IEC 61754
- RoHS
Applications
- Main cross-connection, intermediate cross-connection and the connection between telecommunication devices, and other optical connections.
Specifications
|
Item |
Size (mm) |
Capacity (Core) |
Material |
Surface Treatment |
Item Description |
|
MF-1U |
483x340x 44 |
96 |
Aluminum alloy |
Matt back |
Can install 4 modules or connector panels |
|
MF-2U |
483x340x 88 |
144 |
Aluminum alloy |
Matt back |
Can install 6 modules or connector panels |
|
MF-4U |
483x300x 132 |
288 |
Aluminum alloy |
Matt black |
Can install 12 modules or connector panel |
