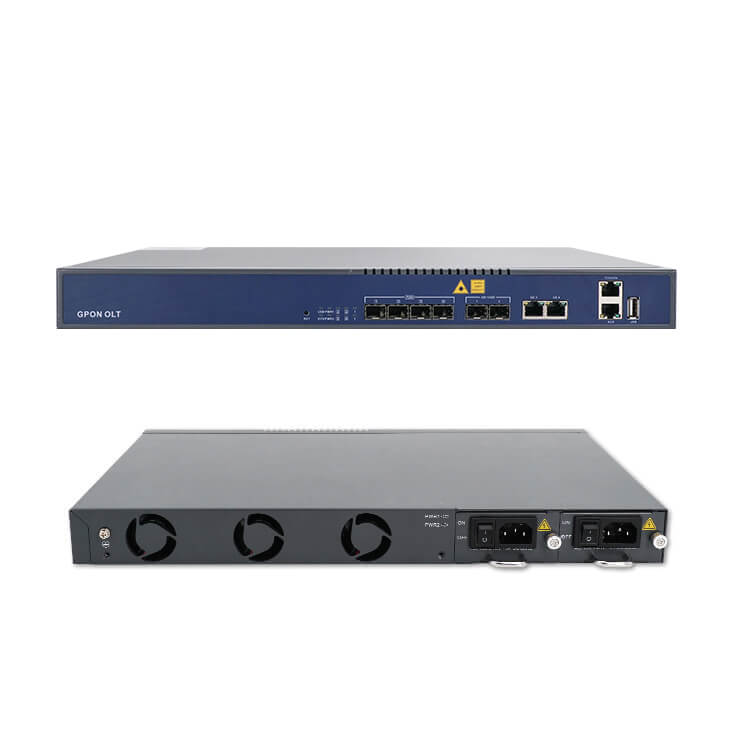

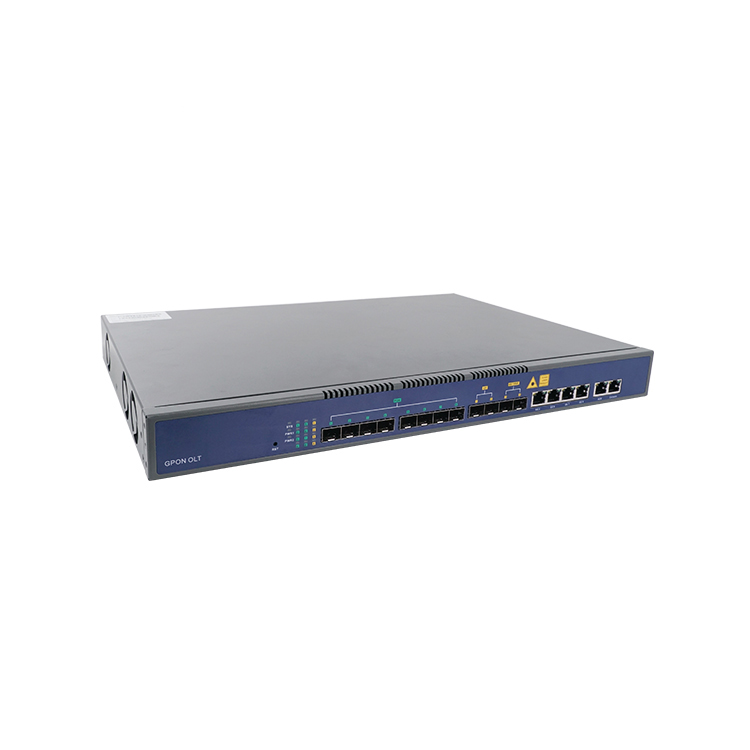

CA6801 Series GPON OLT
Overview
The CA6801 series GPON OLTs are compact and low-density box-shaped OLTs. They provide multiple fiber to the home (FTTH) and Passive Optical LAN (POL) solutions to meet the requirements of economical and efficient network construction.
Only requiring a remarkably compact installation space of 1U, they can be flexibly deployed in a cabinet in fixed mobile convergence (FMC) scenario, national broadband coverage scenario, and enterprise’s all-optical campus scenario.
CA6801 series GPON OLTs provide Gigabit Passive Optical Network (GPON) access and carry all services over a single fiber network, they can help you considerably simplify network architecture as well as reduce Operating Expense (OPEX).
Network Topology
Application Scenarios
- FTTx: FTTH, FTTB, FTTC, FTTR
- POL: Enterprise, Campus, Schools, Departments, Hotels, Industrial Park, Commercial Building, Video Surveillance, etc.
- 5G: Front-haul, FTTM
Features
|
|
|
|
|
|
Lightweight and Small |
Security |
High Reliability |
Rapid Deployment and Installation |
|
Requires only 1U installation space for small-scale convergence, meeting service-bearing requirements for an enterprise or campus with just a single OLT. |
Supports uplink redundancy protection including LACP, STP, RSTP and MSTP, and support RIP&OSPF protocol. Supports link protection. |
Supports dual Alternating Current (AC) or Direct Current (DC) power supplies, providing flexible power supply and high reliability. |
Suitable for installation in both indoor and outdoor cabinets, the OLT can withstand high temperatures, saving both manpower and cabinet space. |
Specifications
|
Type |
CA6801-GP04 |
CA6801-GP08 |
CA6801-GP16 |
|
Upstream Ports |
2*10G SFP+, 2GE |
2*1G SFP, 2*10G SFP+, 4GE |
4*10G SFP+, 4GE |
|
Service Ports |
4*GPON |
8*GPON |
16*GPON |
|
Access ONT |
512 |
1024 |
2048 |
|
Backplane Bandwidth |
104Gbps |
104Gbps |
208Gbps |
|
Port Forwarding Rate |
47.616Mpps |
65.472Mpps |
124.992Mpps |
|
MAC Address |
32K |
32K |
32K |
|
Dimensions (W*D*H) |
442*220*43.6mm |
442*320*43.6mm |
442*320*43.6mm |
|
Weight |
2.95Kg |
4.05Kg |
4.8Kg |
|
Power Supply |
AC:100⁓240V,47/63Hz DC: -36V⁓-75V |
||
|
Power Consumption |
≤35W |
≤45W |
≤85W |
|
Operating Temperature |
0⁓+50℃ |
||
|
Operating Humidity |
5%⁓90% RH, noncondensing |
||
