Self-supporting Bow Type Drop Cable
Overview

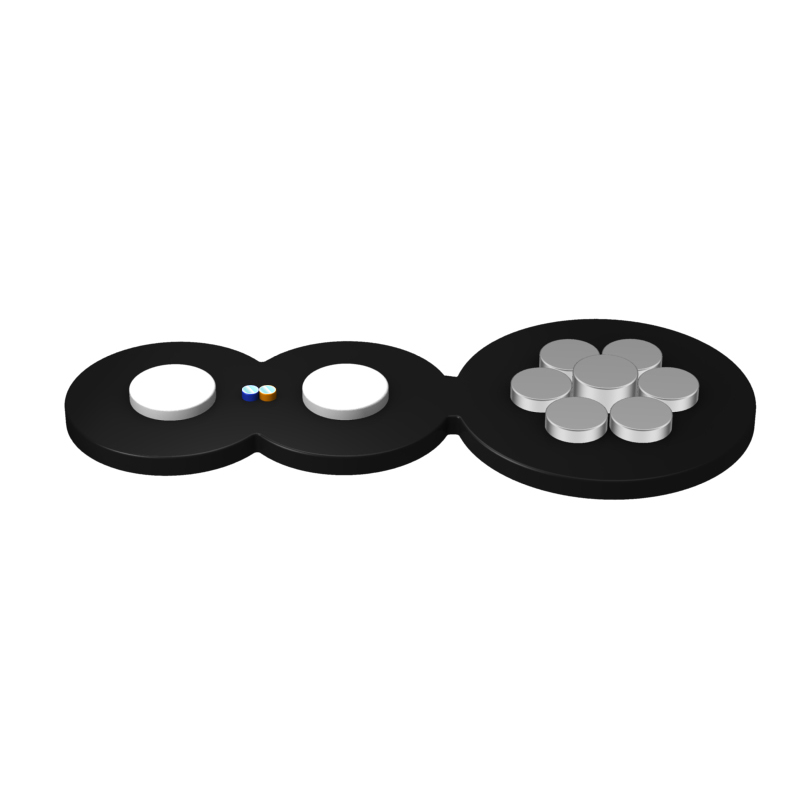

Self-supporting Bow Type Drop Cable is used for FTTx solutions. The optical fiber unit is positioned in the center. Two parallel Steel Wires or Fiber Reinforced Plastics (RFP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then, the cable is completed with a black or color LSZH sheath.
Key Features
- Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
- Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
- Single steel wire as the additional strength member ensures good performance of tensile strength
- Simple structure, light weight and high practicability
- Novel flute design, easily strip and splice, simplify the installation and maintenance
- Low smoke, zero halogen and flame-retardant sheath
Standards
- IEC 332-1
- RoHS
Applications
- Aerial installation
- Indoor access
Specifications
General Specifications
|
Strength Member |
Cable Diameter (mm) |
Fiber Count |
Operating Temperature (℃) |
Cable Weight (kg/km) |
|
|
Steel Wire |
2.0*5.2 |
1-4 |
-40⁓+70 |
21 |
|
|
KFRP |
2.0*5.2 |
1-4 |
-40⁓+70 |
19 |
|
|
FRP |
2.0*5.2 |
1-4 |
-40⁓+70 |
19 |
|
Note: Customized cable structure is available
Mechanical Specifications
|
Strength Member |
Tensile Strength (N) |
Crush Resistance (N/100mm) |
Bending Radius (mm) |
|||
|
Short Term |
Long Term |
Short Term |
Long Term |
Dynamic |
Static |
|
|
Steel Wire |
600 |
300 |
2200 |
1000 |
60 |
30 |
|
KFRP |
600 |
300 |
2200 |
1000 |
60 |
30 |
|
FRP |
600 |
300 |
2200 |
1000 |
60 |
30 |
