Multi-purpose Distribution Cable (GJPFJH≤24F)
Overview

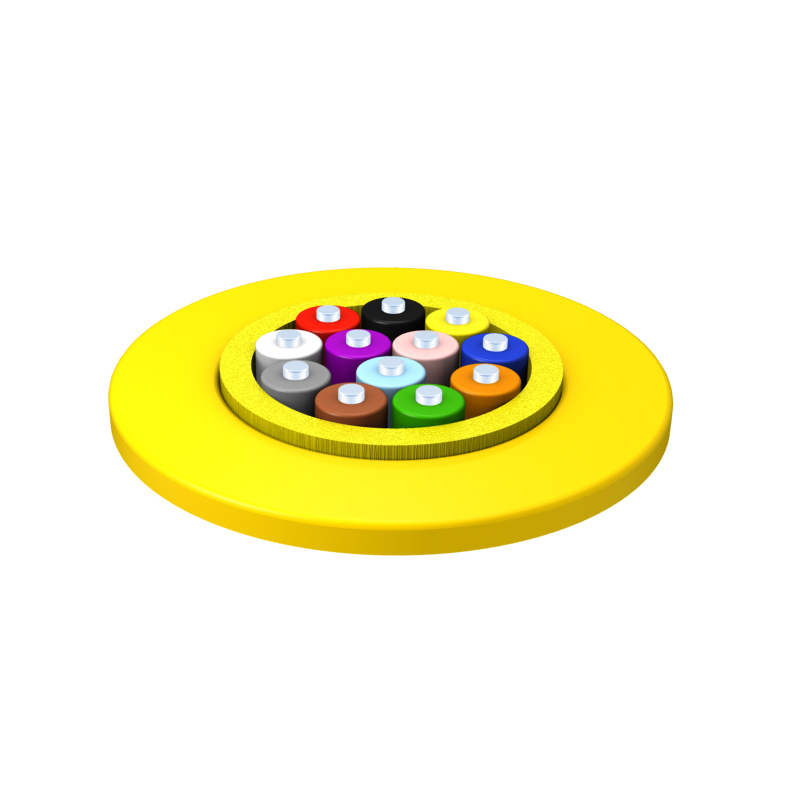

Multi-purpose distribution cable uses several 0.9mm flame-retardant tight buffer fiber as optical communication medium, the tight buffer fiber wrapped with a layer of aramid yarn as strength member units, and the cable is completed with a PVC or LSZH (Low smoke, Zero halogen, Flame-retardant) jacket.
This structure of fiber optical cable is highly dense, soft, light and flexible, has fixed tension and compression resistance, and is easy to be connected. It is widely used in building horizontal wiring. It can also be used for various types of fiber jumpers and equipment interconnection. It is suitable for indoor and non-outdoor environment.
Key Features
- Small volume, compact structure
- Flame retardant, low smoke, non-toxic
- All dielectric, anti-lightning strike, and anti-electromagnetic interference
- Superior mechanical and environmental performance
- Suitable for restricted area installation
- Easy install
Standards
- YD/T 1258.4
- RoHS
Applications
- Indoor any purpose cable distribution
- Backbone distribution cable in a building
- Multi optical fiber jumper
Specifications
|
Fiber Count |
Cable Diameter (mm) |
Bending Radius (mm) |
Tensile Strength (N) |
Crush Resistance (N/100mm) |
Weight (kg/km) |
|||
|
Dynamic |
Static |
Short term |
Long term |
Short term |
Long term |
|||
|
2 |
4.8 |
96 |
48 |
300 |
150 |
1000 |
200 |
18 |
|
4 |
5.0 |
100 |
50 |
300 |
150 |
1000 |
200 |
21 |
|
6 |
5.5 |
110 |
55 |
400 |
200 |
1000 |
200 |
25 |
|
8 |
6.0 |
120 |
60 |
400 |
200 |
1000 |
200 |
29 |
|
12 |
6.5 |
130 |
65 |
600 |
300 |
1000 |
200 |
35 |
|
16 |
7.0 |
140 |
70 |
600 |
300 |
1000 |
200 |
45 |
|
24 |
8.5 |
170 |
85 |
800 |
400 |
1000 |
200 |
64 |
Note: Storage/Operating Temperature: -40⁓70℃, customized cable structure is available
