Multi-purpose Distribution Cable (GJPFJH>24F)
Overview

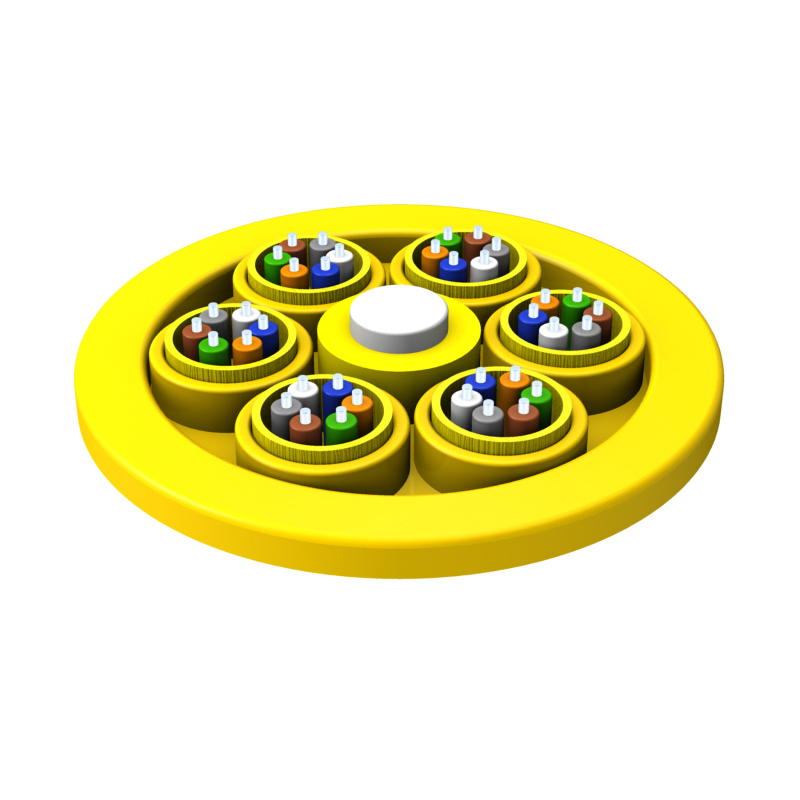

Multi-purpose distribution cable uses multi-fiber subunits (900µm tight buffer fiber, aramid yarn as strength member). A fiber reinforced plastic (FRP) locates in the center of core as a non-metallic strength member. The subunits are stranded around the cable core. The cable is completed with a PVC or LSZH (Low smoke, Zero halogen, Flame retardant) jacket.
Key Features
- Maximum core: 144
- Small volume, compact structure
- Flame retardant, low smoke, non-toxic
- All dielectric, anti-lightning strike, and anti-electromagnetic interference
- Superior mechanical and environmental performance
- Suitable for restricted area installation
- Easy install
Standards
- YD/T 1258.4
- RoHS
Applications
- Indoor installation
- Data center
Specifications
|
Fiber Count |
Cable Diameter (mm) |
Bending Radius (mm) |
Tensile Strength (N) |
Crush Resistance (N/100mm) |
Weight (kg/km) |
|||
|
Dynamic |
Static |
Short term |
Long term |
Short term |
Long term |
|||
|
36 |
14.8 |
296 |
148 |
600 |
300 |
1000 |
300 |
170 |
|
48 |
16.2 |
324 |
162 |
1000 |
500 |
1000 |
300 |
187 |
|
72 |
19.5 |
290 |
195 |
1200 |
600 |
1000 |
300 |
252 |
|
96 |
23.0 |
460 |
230 |
1600 |
800 |
1000 |
300 |
318 |
|
144 |
26.0 |
520 |
260 |
1800 |
900 |
1000 |
300 |
396 |
Note: Storage/Operating Temperature: -40⁓70℃, customized cable structure is available
