CATV XPON ONT
Overview
Our dual-mode CATV XPON Optical Network Terminal (ONT) supports auto-access to EPON/GPON OLT. The ONT automatically switches into the corresponding PON mode by identifying the local OLT mode to complete GPON/EPON adaptive access.
It features high-performance forwarding capabilities to ensure excellent experience of data, voice, and High Definition (HD) video services. It also has good third-party compatibility to work with the third-party OLT, such as Huawei/ZTE/Nokia/FiberHome. It provides a perfect terminal solution and future-oriented service supporting capabilities for all-optical access deployment.
Network Topology
Application Scenarios
- FTTx: FTTO, FTTD, FTTH
- POL: Enterprise, Campus, Schools, Departments, Hotels, Industrial Park, Commercial Building, Video Surveillance, etc.
Features
|
|
|
|
|
Reduce cost |
Improve quality of service |
Accelerate time to market |
|
|
|
Standards
- ITU-T G.984
- IEEE 802.3-2005
Specifications
|
Type |

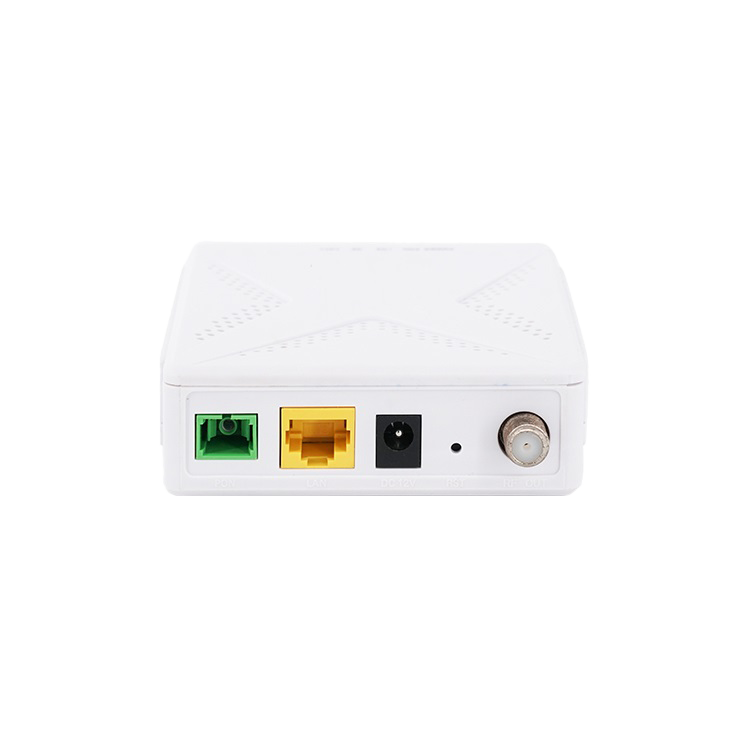

HG4100R |

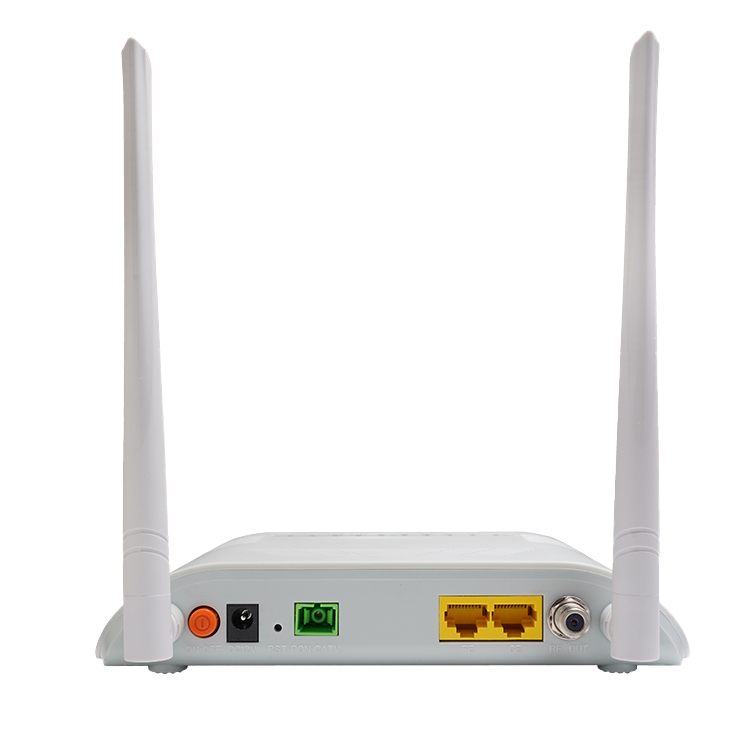

HG4204RL |

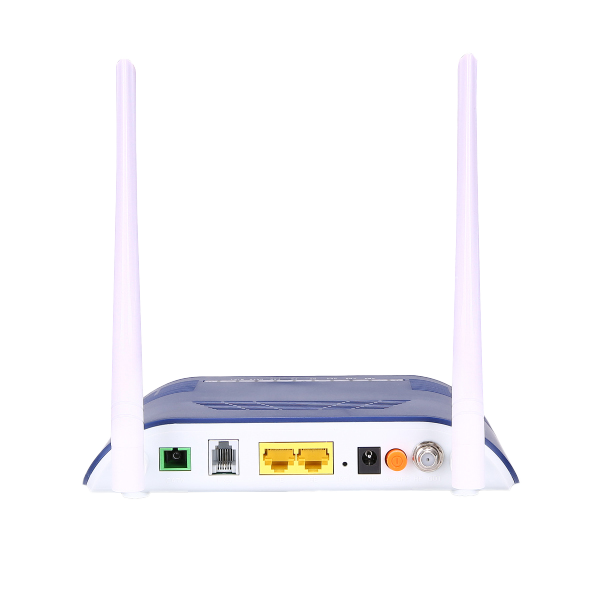

HG4214RL |
HG4215VR |

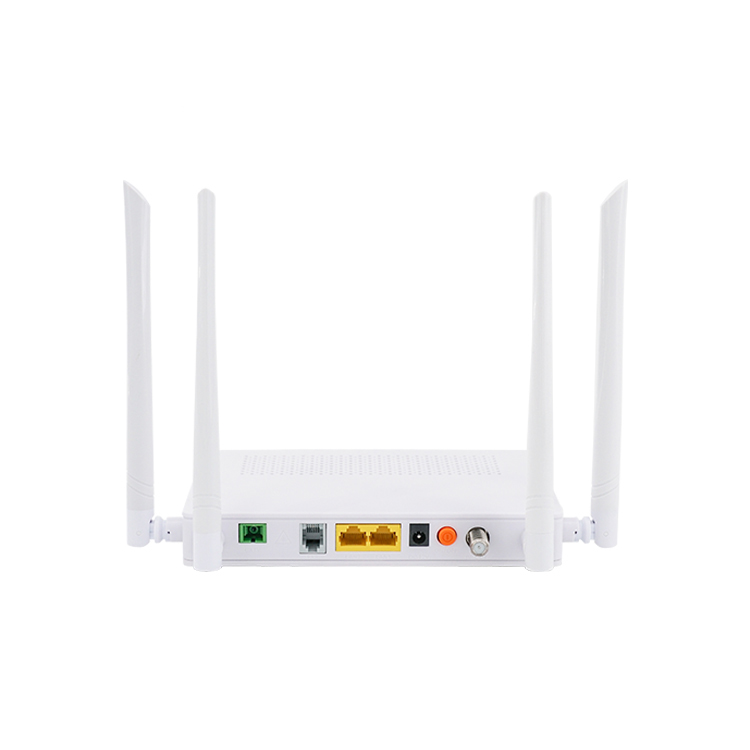

HG4415VR |
|
NNI |
G/EPON |
G/EPON |
G/EPON |
G/EPON |
G/EPON |
|
UNI |
1GE+CATV |
1GE+1FE+CATV+Wi-Fi 4 |
1GE+1FE+1POTS+CATV+Wi-Fi 4 |
2GE+1POTS+CATV+Wi-Fi 5 |
4GE+1POTS+CATV+Wi-Fi 5 |
|
Dimensions (L*W*H) |
100*92*30mm |
185*120*34mm |
185*120*34mm |
178*120*30mm |
178*120*30mm |
|
Weight |
0.13Kg |
0.29Kg |
0.29Kg |
0.28Kg |
0.42Kg |
|
Power Supply |
DC:12V/0.5A |
DC:12V/1A |
DC:12V/1.5A |
||
|
Power Consumption |
≤4.2W |
≤7W |
≤8W |
≤10W |
≤12W |
|
Operating Temperature |
0⁓+50℃ |
||||
|
Operating Humidity |
10%⁓90% RH, non-condensing |
||||
