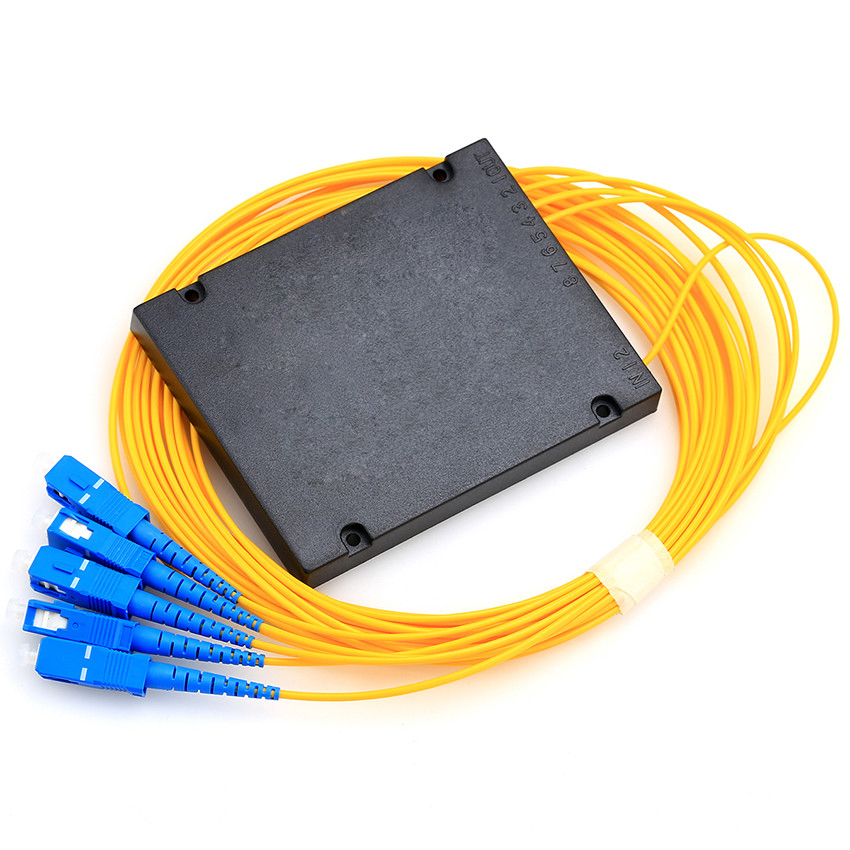

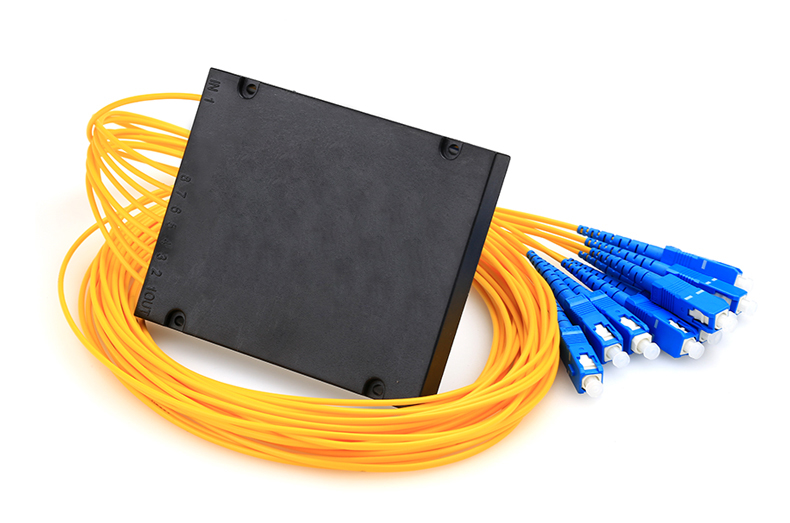

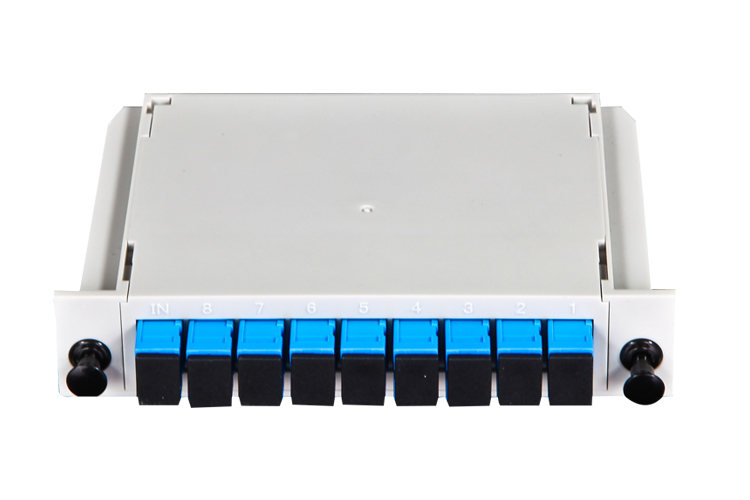

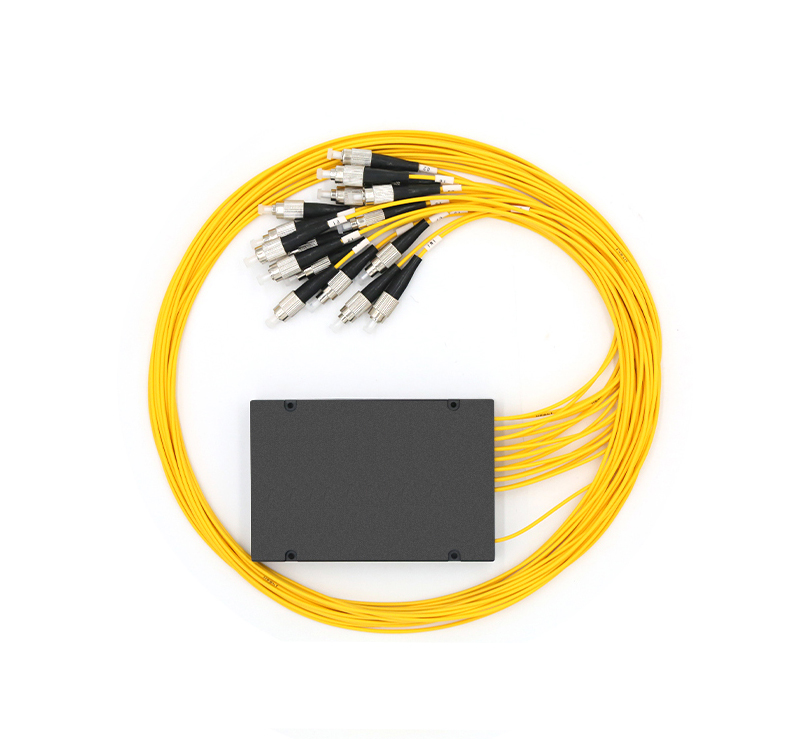

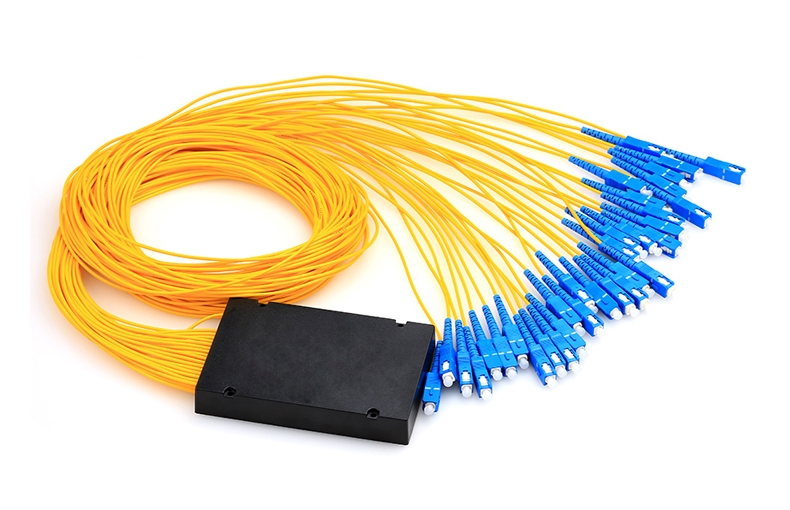

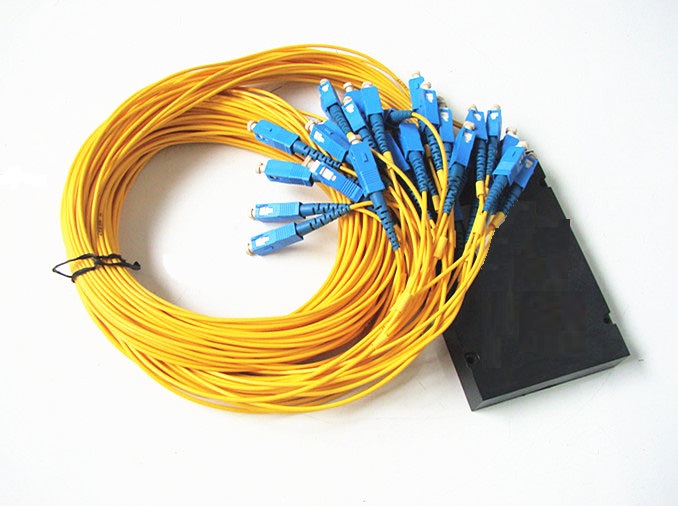

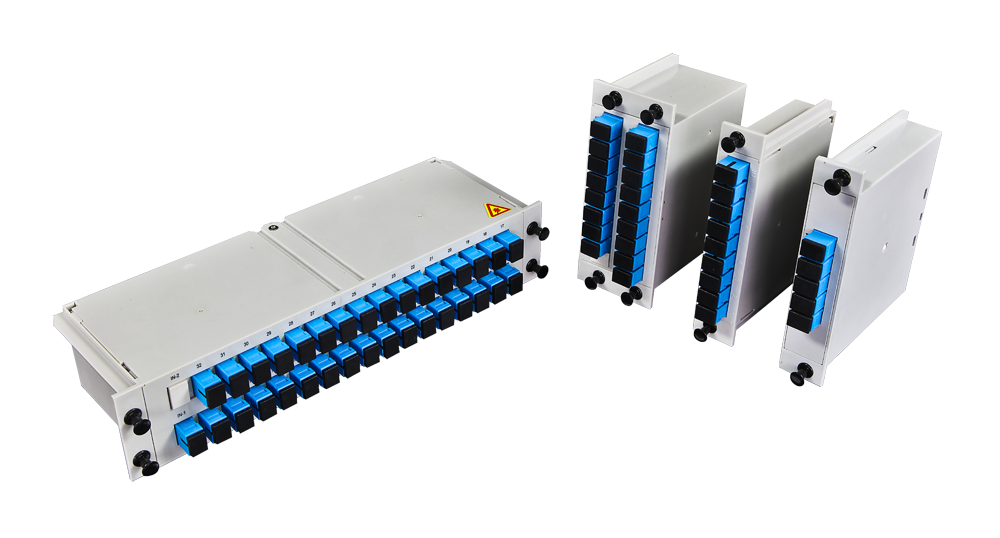

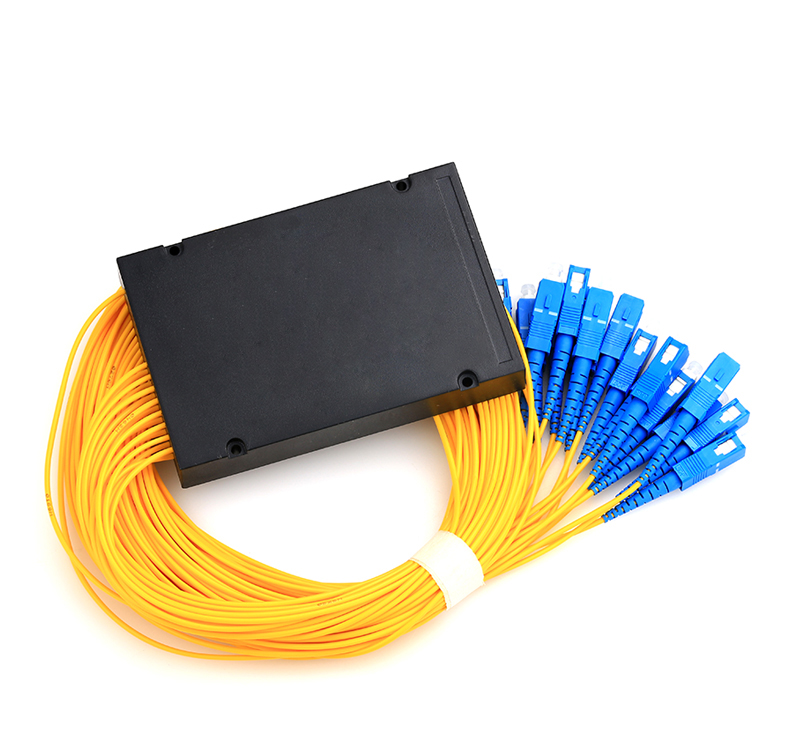

1×N ABS Cassette PLC Splitters
Overview
PLC (Planar Lightwave Circuit) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
1×N ABS Cassette PLC Splitters provide whole series of 1xN splitter products that are tailored for specific applications.
Key Features
- Output port with adapter and be easy for installation and maintenance.
- Small size with high port density and can be installed in different types of boxes.
- Flexible configuration for different split ratio.
- Provides split ratio from 1×2 to 1×128, and 2×4 to 2×128.
- Support SC, FC or LC type connector.
Standards
- Telcordia GR-1209-CORE-2001
- Telcordia GR-1221-CORE-1999
- RoHS
Applications
- FTTX Systems
- CATV Links
- Optical Signal Distribution
Specifications
|
Channel Number |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
1×128 |
|
|
Insertion Loss(dB) |
Typical |
3.8 |
6.9 |
9.9 |
13.1 |
16.2 |
19.2 |
22.8 |
|
Maximum |
3.8 |
7.2 |
10.5 |
13.8 |
17.1 |
20.1 |
23.8 |
|
|
Uniformity (dB) |
<0.4 |
<0.5 |
<0.6 |
<1.2 |
<1.2 |
<1.5 |
<1.8 |
|
|
Polarization Dependent Loss (dB) |
<0.3 |
<0.3 |
<0.3 |
<0.3 |
<0.3 |
<0.3 |
<0.3 |
|
|
Wavelength Dependent Loss (dB) |
<0.5 |
<0.5 |
<0.5 |
<0.5 |
<0.8 |
<0.8 |
<0.8 |
|
|
Directivity (dB) |
≥55 |
|||||||
|
Return Loss (dB) |
≥55 |
|||||||
|
Operating Wavelength (nm) |
1260～1650 |
|||||||
|
Operating Temperature (℃) |
-40～+85 |
|||||||
|
Operating Humidity (%) |
≤93 RH |
|||||||
Note: UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB
Ordering Information
|
Type |
Channel Number |
Packaging Dimension (mm) |
Packaging Material |
Fiber |
Length of Fiber (m) |
Connector |
|
PLC-102SU-C |
1×2 |
128×78×15 |
Black Plastic |
G.657A |
1 |
SC/UPC |
|
PLC-104SU-C |
1×4 |
128×78×15 |
Black Plastic |
G.657A |
1 |
SC/UPC |
|
PLC-108SU-C |
1×8 |
128×78×15 |
Black Plastic |
G.657A |
1 |
SC/UPC |
|
PLC-116SU-C |
1×16 |
128×78×15 |
Black Plastic |
G.657A |
1 |
SC/UPC |
|
PLC-132SU-C |
1×32 |
128×78×15 |
Black Plastic |
G.657A |
1 |
SC/UPC |
|
PLC-164SU-C |
1×64 |
128×78×18 |
Black Plastic |
G.657A |
1 |
SC/UPC |
|
PLC-1128SU-C |
1×128 |
138×96×26 |
Black Plastic |
G.657A |
1 |
SC/UPC |
Note: Fiber, Length of Fiber and connector can be tailor made
