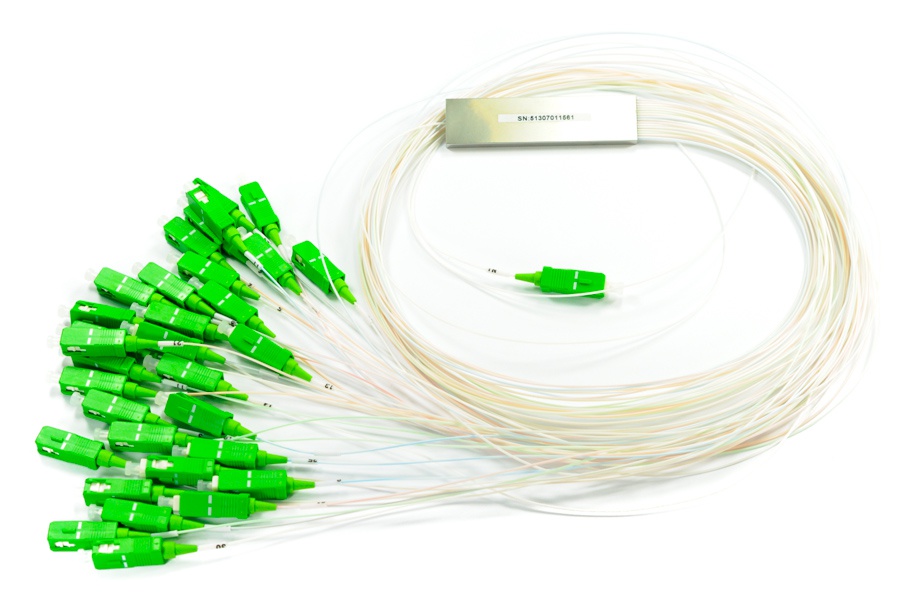

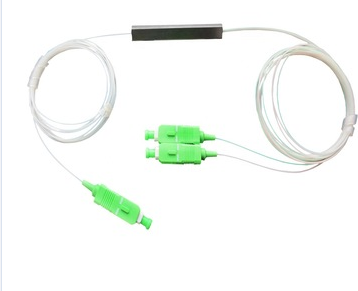

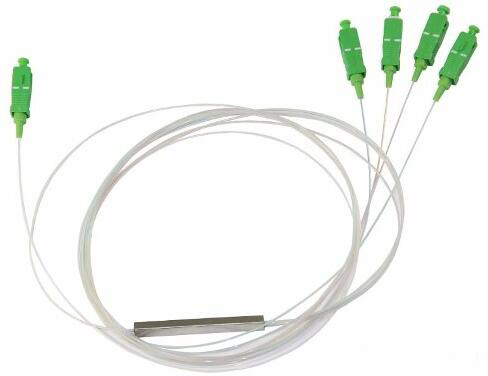

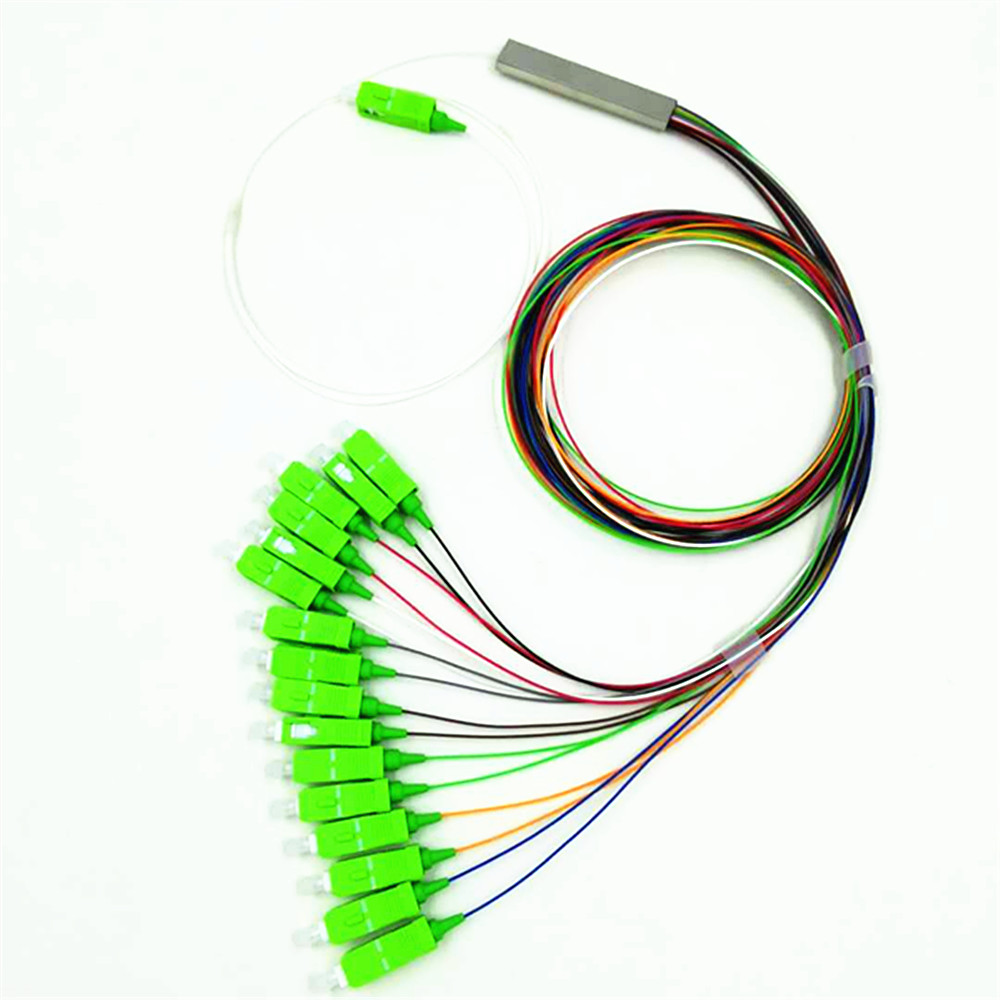

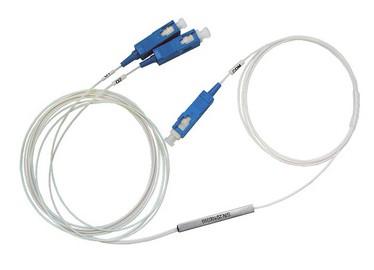

1×N Mini Steel Tube PLC Splitters
Overview
PLC (Planar Lightwave Circuit) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
1×N Mini Steel Tube PLC Splitters provide whole series of 1×N splitter products that are tailored for specific applications.
Key Features
- Connect with Ф0.9 steel tube, save installation and storage space
- Use G.657A optic fiber with small fiber bending loss
- Micro encapsulation
- Provides split ratio from 1×2 to 1×128, and 2×4 to 2×128
- Suitable to install in Fiber Optic Termination Box, Fiber Optic Connection Box, and other small size box
Standards
- Telcordia GR-1209-CORE-2001
- Telcordia GR-1221-CORE-1999
- RoHS
Applications
- FTTX Systems
- CATV Links
- Optical Signal Distribution
Specifications
|
Channel Number |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
1×128 |
|
|
Insertion Loss(dB) |
Typical |
3.8 |
6.9 |
9.9 |
13.1 |
16.2 |
19.2 |
22.8 |
|
Maximum |
3.8 |
7.2 |
10.5 |
13.8 |
17.1 |
20.1 |
23.8 |
|
|
Uniformity (dB) |
<0.4 |
<0.5 |
<0.6 |
<1.2 |
<1.2 |
<1.5 |
<1.8 |
|
|
Polarization Dependent Loss (dB) |
<0.3 |
<0.3 |
<0.3 |
<0.3 |
<0.3 |
<0.3 |
<0.3 |
|
|
Wavelength Dependent Loss (dB) |
<0.5 |
<0.5 |
<0.5 |
<0.5 |
<0.8 |
<0.8 |
<0.8 |
|
|
Directivity (dB) |
≥55 |
|||||||
|
Return Loss (dB) |
≥55 |
|||||||
|
Operating Wavelength (nm) |
1260～1650 |
|||||||
|
Operating Temperature (℃) |
-40～+85 |
|||||||
|
Operating Humidity (%) |
≤93 RH |
|||||||
Note: UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB
Ordering Information
|
Type |
Channel Number |
Packaging Dimension (mm) |
Packaging Material |
Fiber |
Length of Fiber (m) |
Connector |
|
PLC-102SU-M |
1×2 |
40×4×4 |
Nickel copper alloy |
G.657A |
0.7 |
SC/UPC |
|
PLC-104SU-M |
1×4 |
50×7×4 |
Nickel copper alloy |
G.657A |
0.7 |
SC/UPC |
|
PLC-108SU-M |
1×8 |
50×4×4 |
Nickel copper alloy |
G.657A |
0.7 |
SC/UPC |
|
PLC-116SU-M |
1×16 |
60×12×4 |
Nickel copper alloy |
G.657A |
0.7 |
SC/UPC |
|
PLC-132SU-M |
1×32 |
70×20×6 |
Nickel copper alloy |
G.657A |
0.7 |
SC/UPC |
|
PLC-164SU-M |
1×64 |
100×40×6 |
Nickel copper alloy |
G.657A |
0.7 |
SC/UPC |
|
PLC-1128SU-M |
1×128 |
140×70×8 |
Nickel copper alloy |
G.657A |
0.7 |
SC/UPC |
Note: Fiber, Length of Fiber, Connector can be tailor made.
