S1800 Series Unmanaged GE Switches
Overview
Business S1800 Series Unmanaged GE Switches are a family of affordable switches provide Gigabit Ethernet connectivity for your small business network. Available in desktop and rack-mount models, these switches are designed to suit any small business with basic network needs and are optimized for power efficiency. They provide robust network connectivity your business demands, as well as added reliability with advanced features such as Quality of Service (QoS), loop detection, and cable diagnostics, all in a switch that you can set up yourself in minutes. The Business S1800 Series switches bring the proven reliability and investment protection of Bland networking solutions to your small business.
Key Features
|
|
|
|
|
|
Simplicity |
Affordability |
Performance |
Efficiency |
|
Plug-and-play without a need for IT know-how or support. |
Entry-level switches at affordable small business prices. |
Gigabit Ethernet and integrated quality-of-service (QoS) intelligence to optimize delay-sensitive services and improve overall network performance. |
Supports Energy Efficient Ethernet (IEEE 802.3az) standard, which optimizes power use to conserve energy without compromising performance. |
Standards
- IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, IEEE 802.3az Energy Efficient Ethernet, IEEE 802.3af Power over Ethernet
Applications
- Small offices, workgroups, departments, growing offices with limited IT know-how and support.
Specifications
|
Type |
S1800-5T |

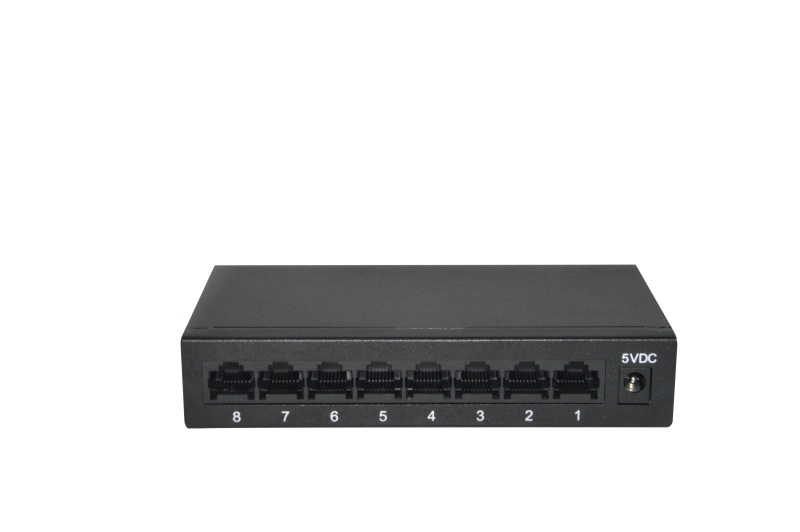

S1800-8T |

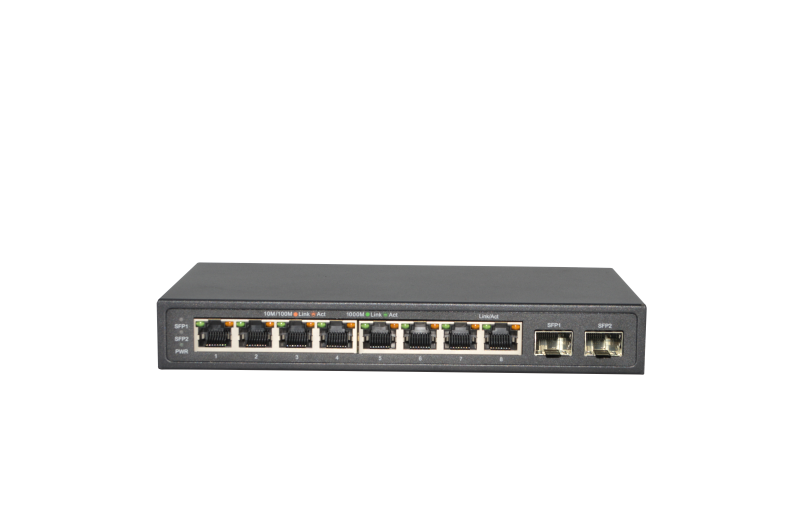

S1800-8T-2G |
S1800-16T |

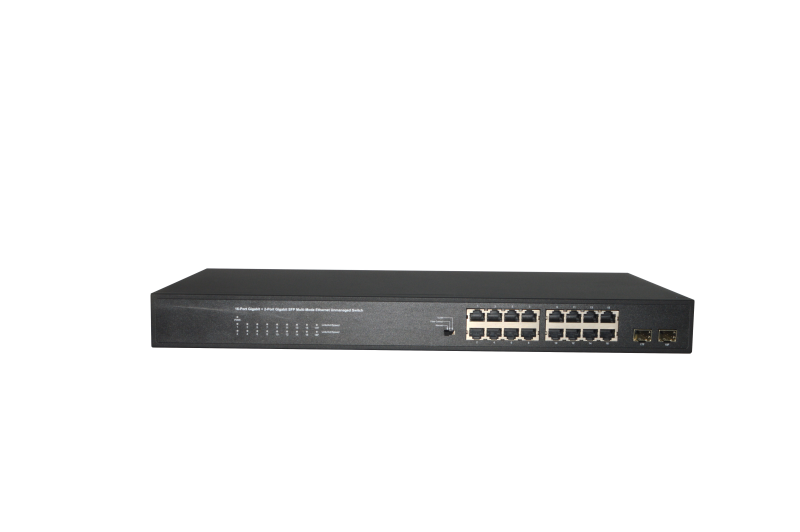

S1800-16T-2G |
|
Switching Capacity |
10Gbps |
16Gbps |
20Gbs |
32Gbps |
36Gbps |
|
Packet Forwarding Rate |
7.44Mpps |
11.9Mpps |
14.88Mpps |
23.81Mpps |
26.79Mpps |
|
Total System Ports |
5 Gigabit Ethernet |
8 Gigabit Ethernet |
10 Gigabit Ethernet |
16 Gigabit Ethernet |
18 Gigabit Ethernet |
|
RJ-45 Ports |
5 Gigabit Ethernet |
8 Gigabit Ethernet |
8 Gigabit Ethernet |
16 Gigabit Ethernet |
16 Gigabit Ethernet |
|
Combo Ports (RJ-45 + SFP) |
- |
- |
2 SFP |
- |
2 SFP |
|
Dimensions (W*D*H) |
100*64*24mm |
140*76*28mm |
190*100*28mm |
280*126*44mm |
440*240*44mm |
|
Weight |
0.24Kg |
0.25Kg |
0.69Kg |
0.96Kg |
2.31Kg |
|
Power Supply |
AC:200⁓240V/50⁓60Hz, external |
AC:100⁓240V/50⁓60Hz |
|||
|
Power Consumption |
≤2.51W |
≤3.1W |
≤5.78W |
≤10.1W |
≤12.5W |
|
Operating Temperature |
0℃⁓40℃ |
||||
|
Operating Humidity |
10%⁓90% relative, noncondensing |
||||
|
Type |
S1800-24T |

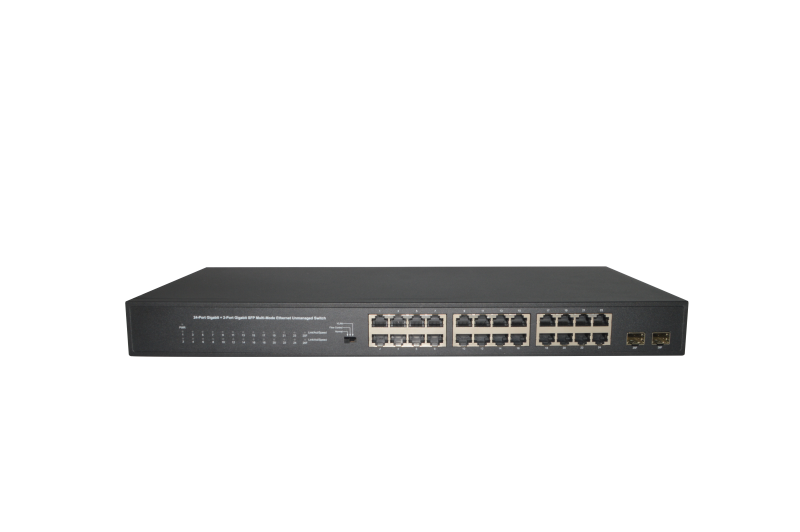

S1800-24T-2G |

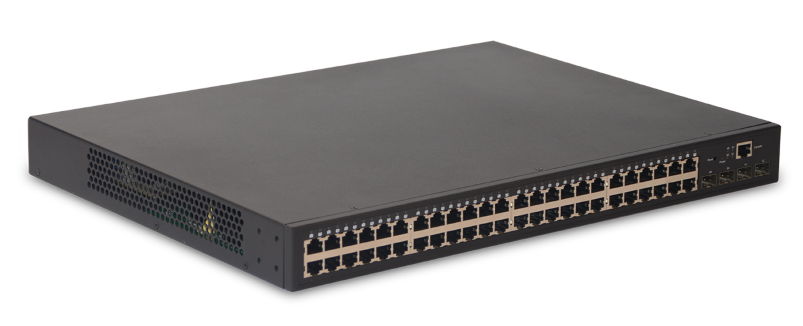

S1800-48T-2G |
|
Switching Capacity |
48Gbps |
52Gbps |
100Gbps |
|
Packet Forwarding Rate |
35.7Mpps |
38.688Mpps |
74.4Mpps |
|
Total System Ports |
24 Gigabit Ethernet |
26 Gigabit Ethernet |
50 Gigabit Ethernet |
|
RJ-45 Ports |
24 Gigabit Ethernet |
24 Gigabit Ethernet |
48 Gigabit Ethernet |
|
Combo Ports (RJ-45 + SFP) |
- |
2 SFP |
2 SFP |
|
Dimensions (W*D*H) |
280*126*44mm |
440*208*44mm |
440*208*44mm |
|
Weight |
1.08Kg |
2.42Kg |
3.49Kg |
|
Power Supply |
AC:100⁓240V/50⁓60Hz |
||
|
Power Consumption |
≤16W |
≤17W |
≤34.6W |
|
Operating Temperature |
0℃⁓45℃ |
||
|
Operating Humidity |
10%⁓90% relative, noncondensing |
||
