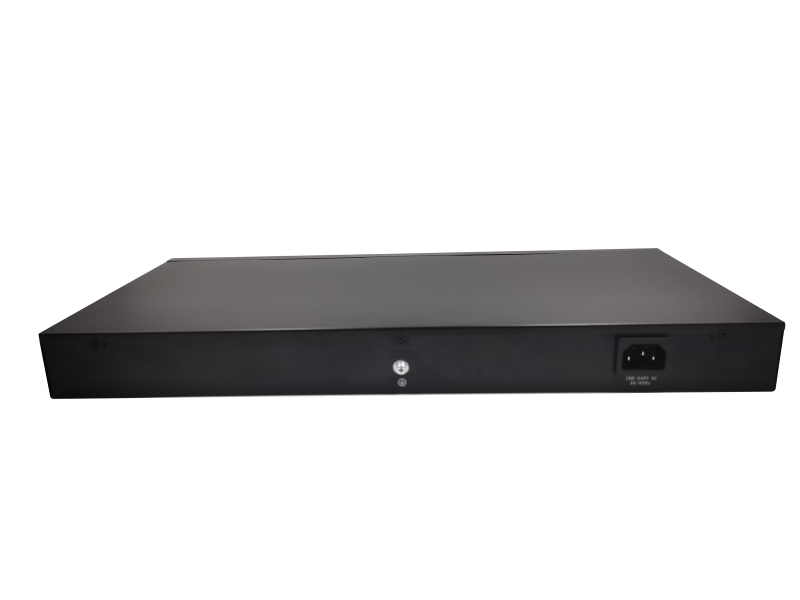

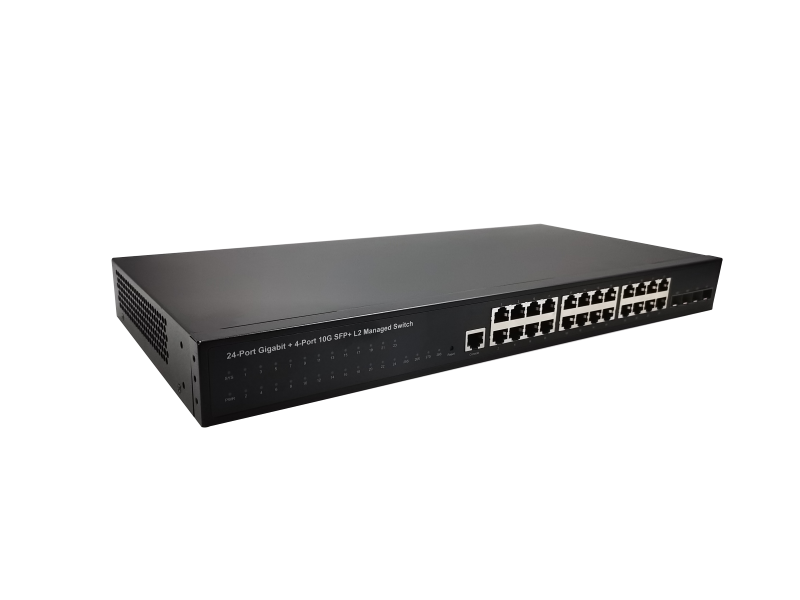

S5800L Series L2+ Switches
Overview
As foundational building blocks for the Bland Digital Network Architecture, S5800L Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise. They provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly.
With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, Layer 3 feature support, and cold patching, S5800L Series switches are the industry’s unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access.
Key Features
|
|
|
|
|
|
Flexibility |
Security |
Performance |
Proactive management |
|
Flexible downlink and uplink ports meet different network needs. |
Protect your network and your data with advanced security features like link encryption and segmentation. |
Gigabit Ethernet, multigigabit and wire-speed performance provide a solid foundation for campus network. |
Solve problems faster, enhance operational efficiency, and reduce the risk of downtime with advanced network management. |
Standards
- IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ae 10Gigabit Ethernet, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.1D (STP, GARP, and GVRP), IEEE 802.1Q/p VLAN, IEEE 802.1w Rapid STP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, IEEE 802.3at, IEEE 802.1AB Link Layer Discovery Protocol, IEEE 802.3az Energy Efficient Ethernet.
Applications
- Medium Enterprises, Medium hotels, workgroups, campus aggregation network, data center access network
Specifications
|
Switch Model |
S5800L-24T-4X |
S5800L-24P-4X |
S5800L-48T-4G |
S5800L-48T-4X |
|
Switching Capacity |
128Gbps |
128Gbps |
104Gbps |
176Gbps |
|
Packet Forwarding Rate |
95.23Mpps |
95.23Mpps |
77.376Mpps |
130.944Mpps |
|
MAC Address Table |
16K |
16K |
16K |
16K |
|
Downlink Ports |
24 Gigabit ports data |
24 Gigabit ports full PoE+ |
48 Gigabit ports data |
48 Gigabit ports data |
|
Uplink Ports |
4×1/10G SFP+ fixed uplinks |
4×1/10G SFP+ fixed uplinks |
4×1G SFP fixed uplinks |
4×1/10G SFP+ fixed uplinks |
|
Dimensions (W*D*H) |
440*208*44mm |
440*208*44mm |
440*330*44.5mm |
440*330*44.5mm |
|
Weight |
3.2Kg |
3.95Kg |
5.85Kg |
5.85Kg |
|
Power Supply |
AC:100⁓240V, 50⁓60Hz |
|||
|
PoE Power Budget |
- |
370W |
- |
- |
|
Power Consumption |
≤25W |
≤425W |
≤32.1W |
≤33.4W |
|
Operating Temperature |
0℃⁓45℃ |
|||
|
Operating Humidity |
10%⁓90% relative, noncondensing |
|||
