OSN8800 U2 OTN Platform
Overview

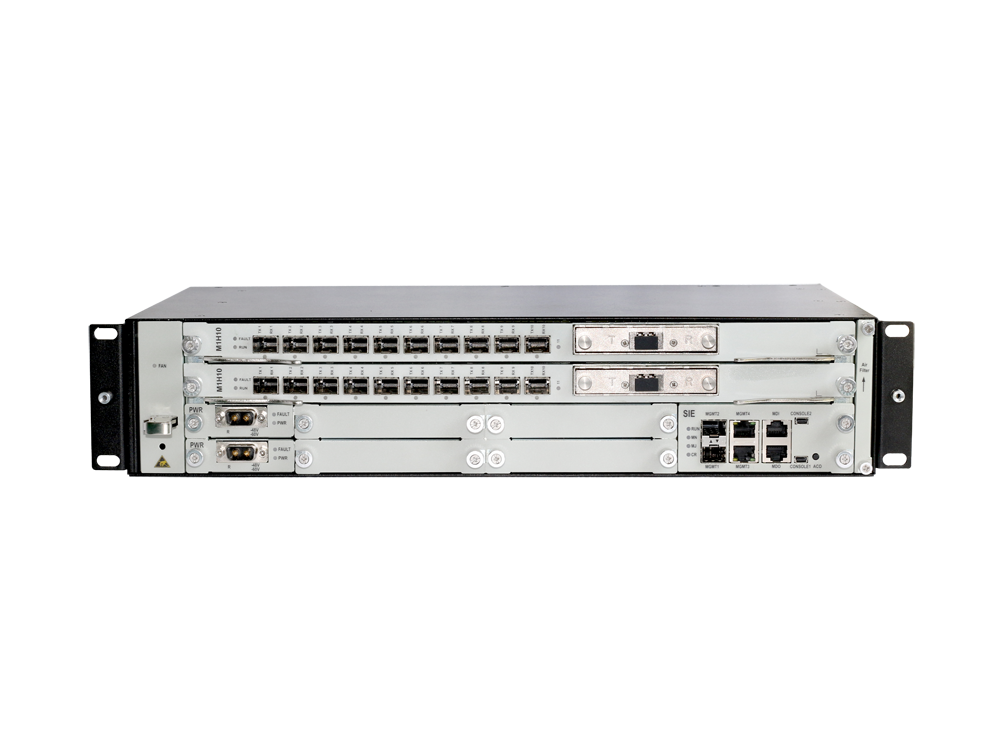

The OSN8800 U2 OTN platform is small-size intelligent OTN equipment. It supports Time Division Multiplexing (TDM), packet, and Optical Transmission Network (OTN) services over a metro or campus optical network.
This product is 2U high and has 2 service slots. It supports 400Gbit/s universal switching capacity and 10G/40G/100G/200G transmission. It enables multiple high-bandwidth services (from 100Mbit/s to 100Gbit/s) to be delivered at less cost. With various management and protection functions, it is applicable to the metropolitan aggregation and edge access layer, characterized to superior expansion, excellent reliability and powerful maintainability.
Key Features
|
|
|
|
|
|
Compact and Flexible |
Multi-service Support |
Excellent Stability |
High Reliability |
|
|
|
|
Applications
- Aggregation or access layer of operators’ metropolitan network
- Connectivity between data centers
Standards
- ITU-T G.703 Physical/Electrical Characteristics, ITU-T G.704 Synchronous Frame Structures, ITU-T G.707 SDH Network Interface, ITU-T G.774 SDH Management Information, ITU-T G.7041 GFP, ITU-T G.709 OTN Interfaces, ITU-T G.783, ITU-T G.798, ITU-T G.873.1, ITU-T G.874
Specifications
|
Model |
OSN8800 U2 |
|
Service access capability |
FE/GE, 10GE LAN/WAN, 40GE, 100GE STM-1/4/16/64/256 OC 3/12/48/192/768 OTU1, OTU2, OTU3, OTU4 ESCON, FICON, FICON EXPRESS FICON 4G, FICON 8G, FICON 10G, FDDI FC100, FC200, FC400, FC800, FC1200 HD-SDI, HD-SDIRBR, DVB-ASI, SDI, 3G-SDI, 3G-SDIRBR |
|
System transmission capacity |
80*10/100/200Gbit/s |
|
Electrical cross granule per sub rack |
400Gbit/s |
|
Electrical grooming granularity |
ODU0, ODU1, ODU2, ODU2e, ODU3, ODU4, ODU flex, VC4, VC12, Packet |
|
Service slots |
2 |
|
Capacity per card |
Client side: 2*100G, 10*10G, 16*2.5G, etc. Line side: 1*200G, 2*100G, 10*10G, etc. |
|
Protection types |
Power/Power card/System control & cross-connect unit 1+1 redundancy Client services 1+1, Optical channel/Optical line 1+1/1:1 OCh/ODUk 1+1/m:n/Ring, PW/LSP path 1+1/1:1 and LSP protection SNCP 1+1/1:1, Dual-home protection, Ethernet LAG protection WRAPING protection, Switching time < 50ms |
|
Synchronization |
Physical layer clock synchronization and SyncE External clock input/output interfaces IEEE 1588 v2 time synchronization protocol |
|
Dimensions (H*W*D) |
94*444*242mm |
|
Weight |
10Kg |
|
Power Consumption |
≤450W |
|
Power supply |
-40⁓-72V DC, 100⁓240V AC |
|
Operating temperature |
0⁓+40℃ |
|
Storage temperature |
-40⁓+70℃ |
|
Operating Humidity |
10%⁓90% relative, noncondensing |
