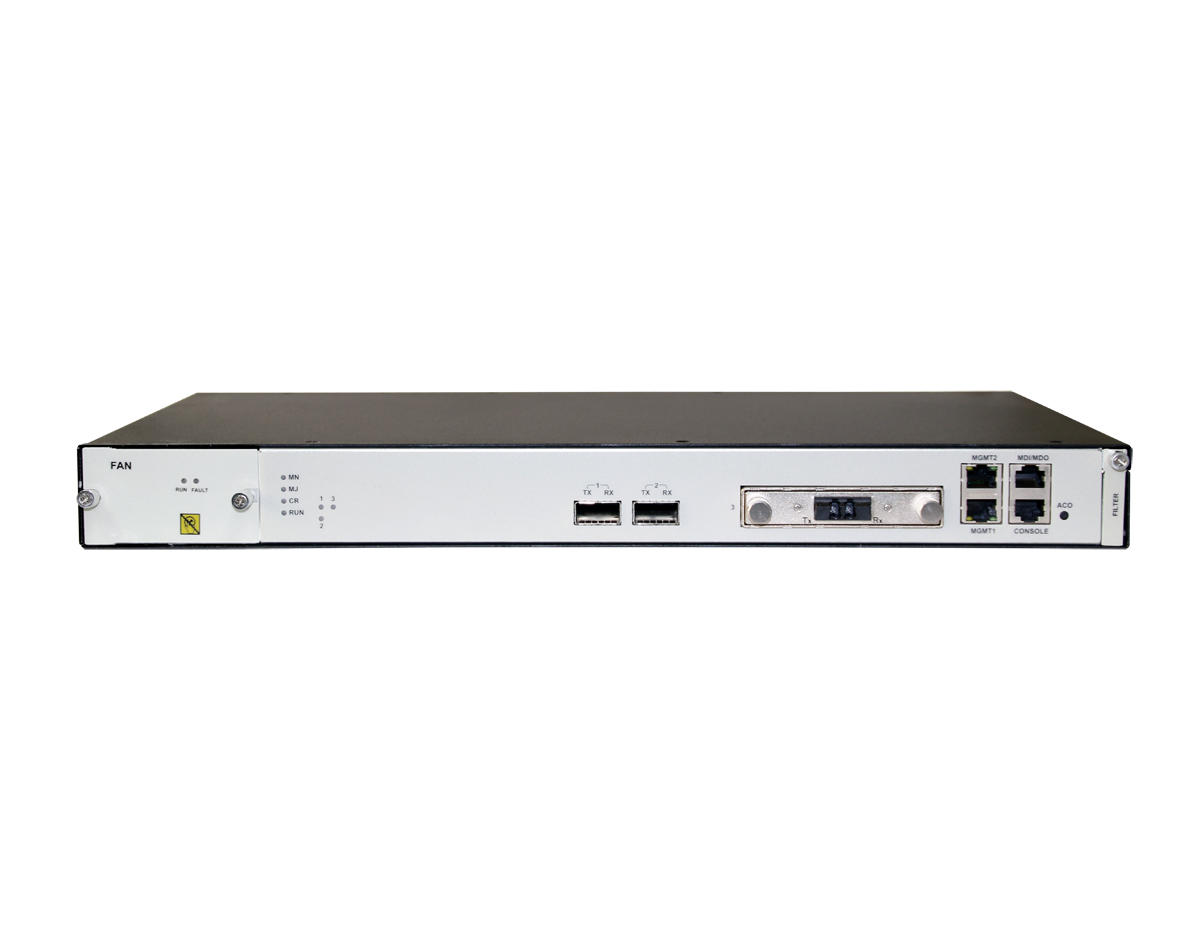

OSN8800 U1 OTN Platform
Overview
The OSN8800 U1 OTN platform is a series of box architecture intelligent OTN equipment. It supports Time Division Multiplexing (TDM), packet, and Optical Transmission Network (OTN) services over a metro or campus optical network.
This product is 1U high with single service slot. It supports 200Gbit/s universal switching capacity and 10G/40G/100G transmission. It enables multiple high-bandwidth services (from 100Mbit/s to 100Gbit/s) to be delivered at less cost. With various management and protection functions, it is applicable to the metropolitan edge access layer, excellent reliability and powerful maintainability.
Key Features
|
|
|
|
|
|
Compact and Flexible |
Multi-service Support |
Excellent Stability |
High Reliability |
|
|
|
|
Applications
- Access layer of operators’ metropolitan network or core of LAN network
- Connectivity between small data centers
Standards
- ITU-T G.703 Physical/Electrical Characteristics, ITU-T G.704 Synchronous Frame Structures, ITU-T G.707 SDH Network Interface, ITU-T G.774 SDH Management Information, ITU-T G.7041 GFP, ITU-T G.709 OTN Interfaces, ITU-T G.783, ITU-T G.798, ITU-T G.873.1, ITU-T G.874
Specifications
|
Model |
OSN8800 U1 |
|
Service access capability |
FE/GE, 10GE LAN/WAN, 40GE, 100GE STM-1/4/16/64/256 OC 3/12/48/192/768 OTU1, OTU2, OTU3, OTU4 ESCON, FICON, FICON EXPRESS FICON 4G, FICON 8G, FICON 10G, FDDI FC100, FC200, FC400, FC800, FC1200 HD-SDI, HD-SDIRBR, DVB-ASI, SDI, 3G-SDI, 3G-SDIRBR |
|
System transmission capacity |
80*10/100/200Gbit/s |
|
Electrical cross granule per sub rack |
200Gbit/s |
|
Electrical grooming granularity |
ODU0, ODU1, ODU2, ODU2e, ODU3, ODU4, ODU flex, VC4, VC12, Packet |
|
Service slots |
1 |
|
Capacity per card |
Client side: 1*100G, 10*10G, 16*2.5G Line side: 1*100G, 10*10G, 2*10G |
|
Protection types |
Power/Power card/System control & cross-connect unit 1+1 redundancy Client services 1+1, Optical channel/Optical line 1+1/1:1 OCh/ODUk 1+1/m:n/Ring, PW/LSP path 1+1/1:1 and LSP protection SNCP 1+1/1:1, Dual-home protection, Ethernet LAG protection WRAPING protection, Switching time < 50ms |
|
Synchronization |
Physical layer clock synchronization and SyncE External clock input/output interfaces IEEE 1588 v2 time synchronization protocol |
|
Dimensions (H*W*D) |
44*442*340mm |
|
Weight |
10Kg |
|
Power Consumption |
≤200W |
|
Power supply |
-40⁓-72V DC, 100⁓240V AC |
|
Operating temperature |
0⁓+40℃ |
|
Storage temperature |
-40⁓+70℃ |
|
Operating Humidity |
10%⁓90% relative, noncondensing |
