Optical Distribution Unit
Overview

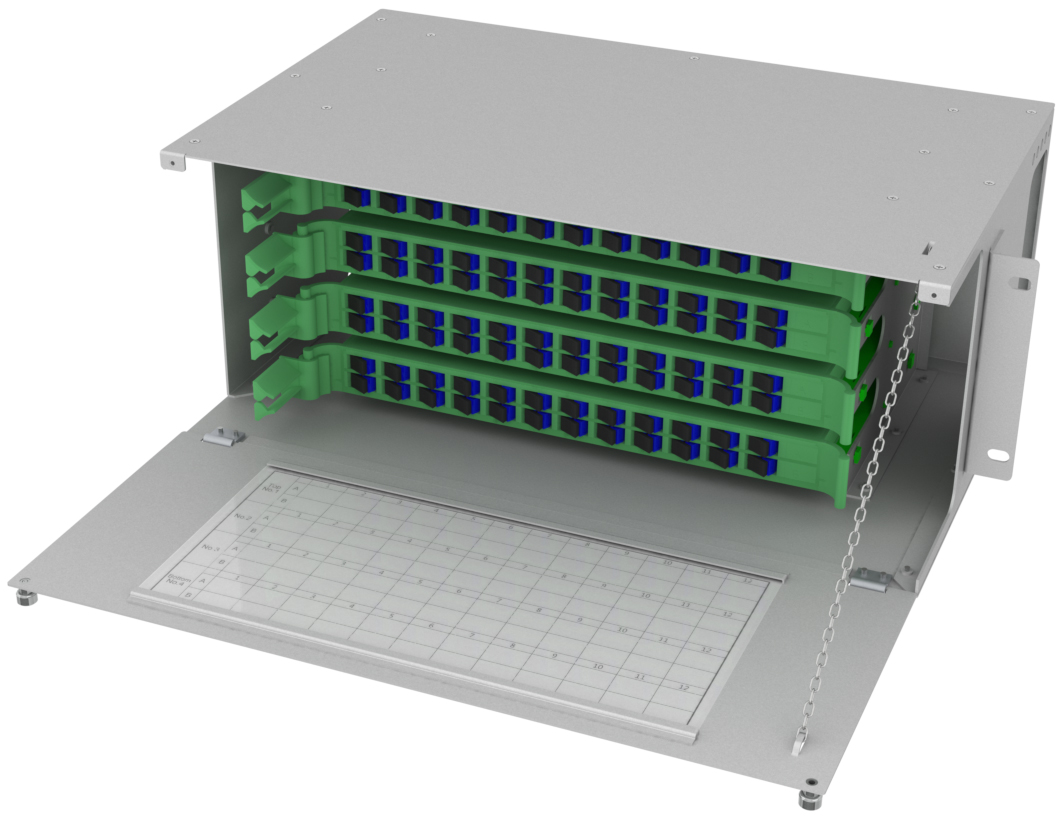

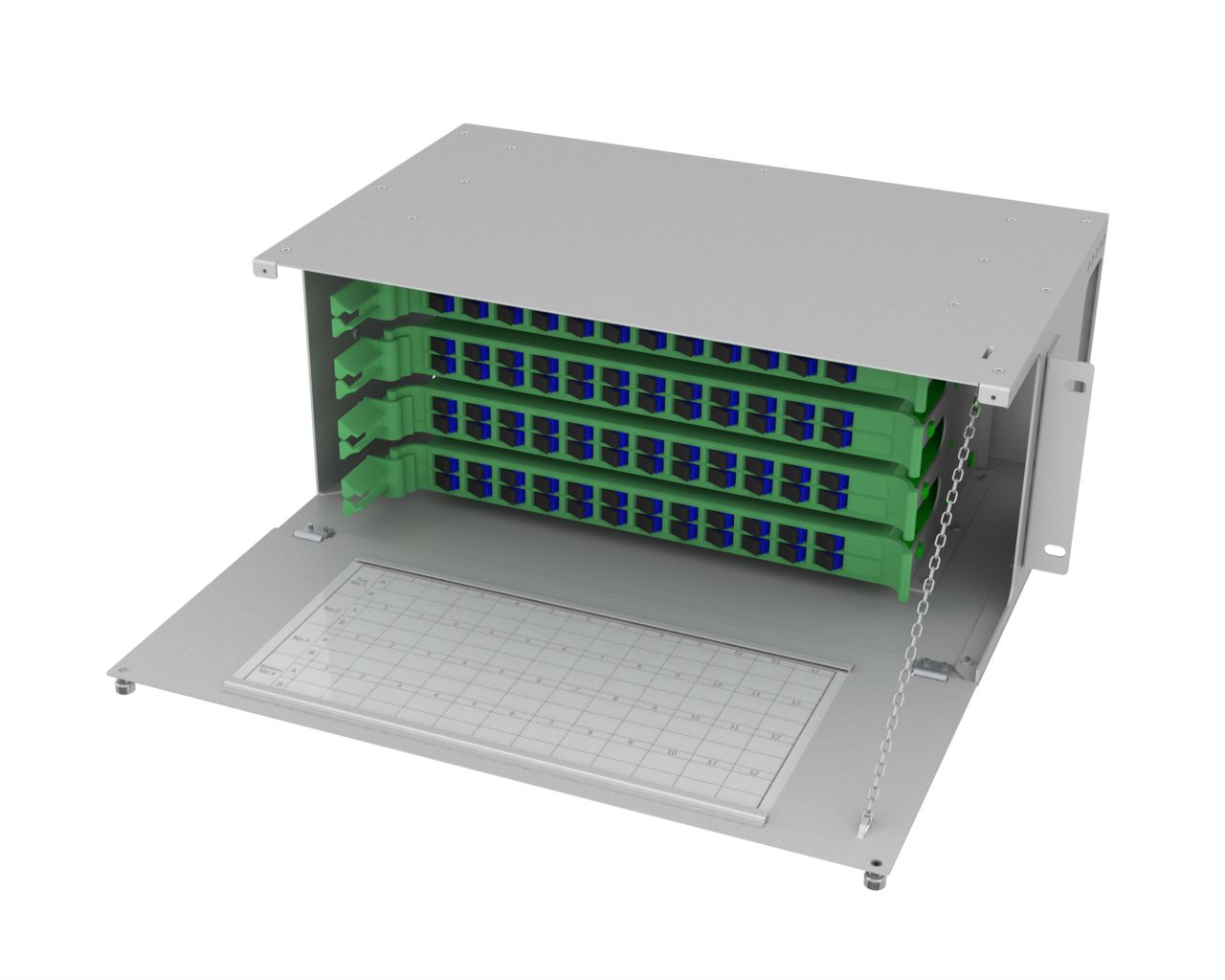

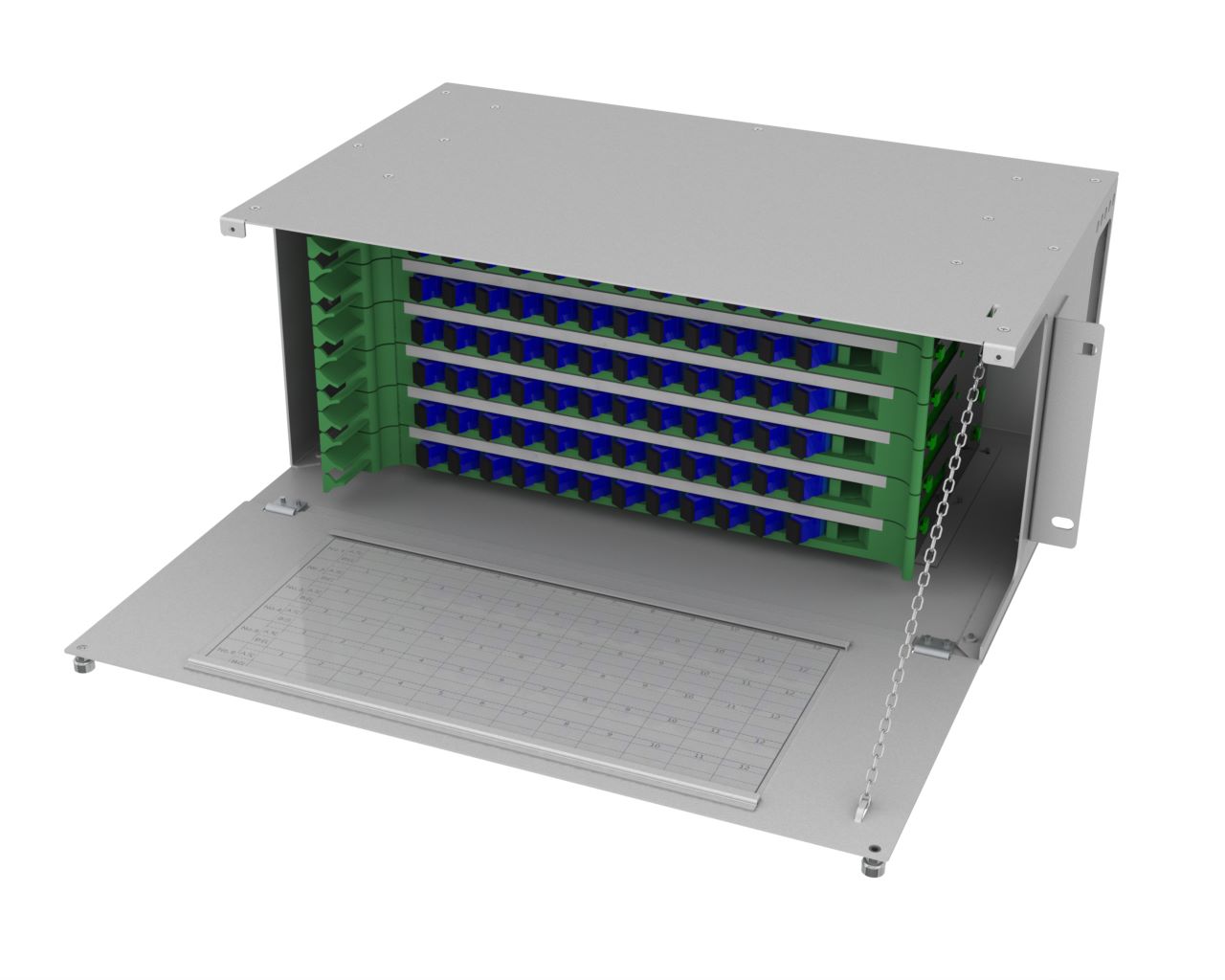

Optical Distribution Unit (ODU) is made of high quality cold-rolled steel plate, this product can house 12-core splicing-distribution integrated trays and optical fiber jumper storage trays. ODU normally used for ODF or be installed in 19” rack alone to distribute fiber cables. Cables led out from the left side and the frame has two mounting brackets. It can be used in multiple scenarios.
Key Features
- Standard 19" installation, half-open structure, depth of recess can be determined in supply contract.
- Uses a 12-core splicing-distribution integrated module which can be removed.
- Cable can be introduced from above or below as required (optional).
- Uses FC, SC, and LC adapters, applicable to ribbon and bundle cables (optional).
- Complete set of reliable cable fixing, stripping, and grounding parts available.
Standards
- Telcordia GR-1209-CORE-2001
- Telcordia GR-1221-CORE-1999
- RoHS
Applications
- ODF
- 19” rack
Specifications
|
Type |
ODU-1U |
ODU-2U |
ODU-3U |
ODU-4U |
ODU-5U |
|
Installation Method |
19" rack mounting |
||||
|
Height (U) |
1 |
2 |
3 |
4 |
5 |
|
Standard Capacity (Core) |
12 |
24 |
48 |
72 |
96 |
|
Adapter Type |
SC, FC, LC, etc. |
||||
|
Connector Insertion Loss (dB) |
≤ 0.3 |
||||
|
Insert-Extract Durability (Times) |
1000 |
||||
|
Return Loss (dB) |
PC ≥ 45 dB, UPC ≥ 50 dB, APC ≥ 60 dB |
||||
|
Operating Environment |
Mounted on rack indoor |
||||
|
Material |
Metal plate |
||||
|
Operating Temperature (℃) |
-40 to +60 |
||||
|
Ambient Humidity (℃) |
≤ 95%（+40℃) |
||||
|
Atmospheric Pressure |
70 kPa to 106 kPa |
||||
|
Supported Cables |
Ribbon and bundle cables |
||||
