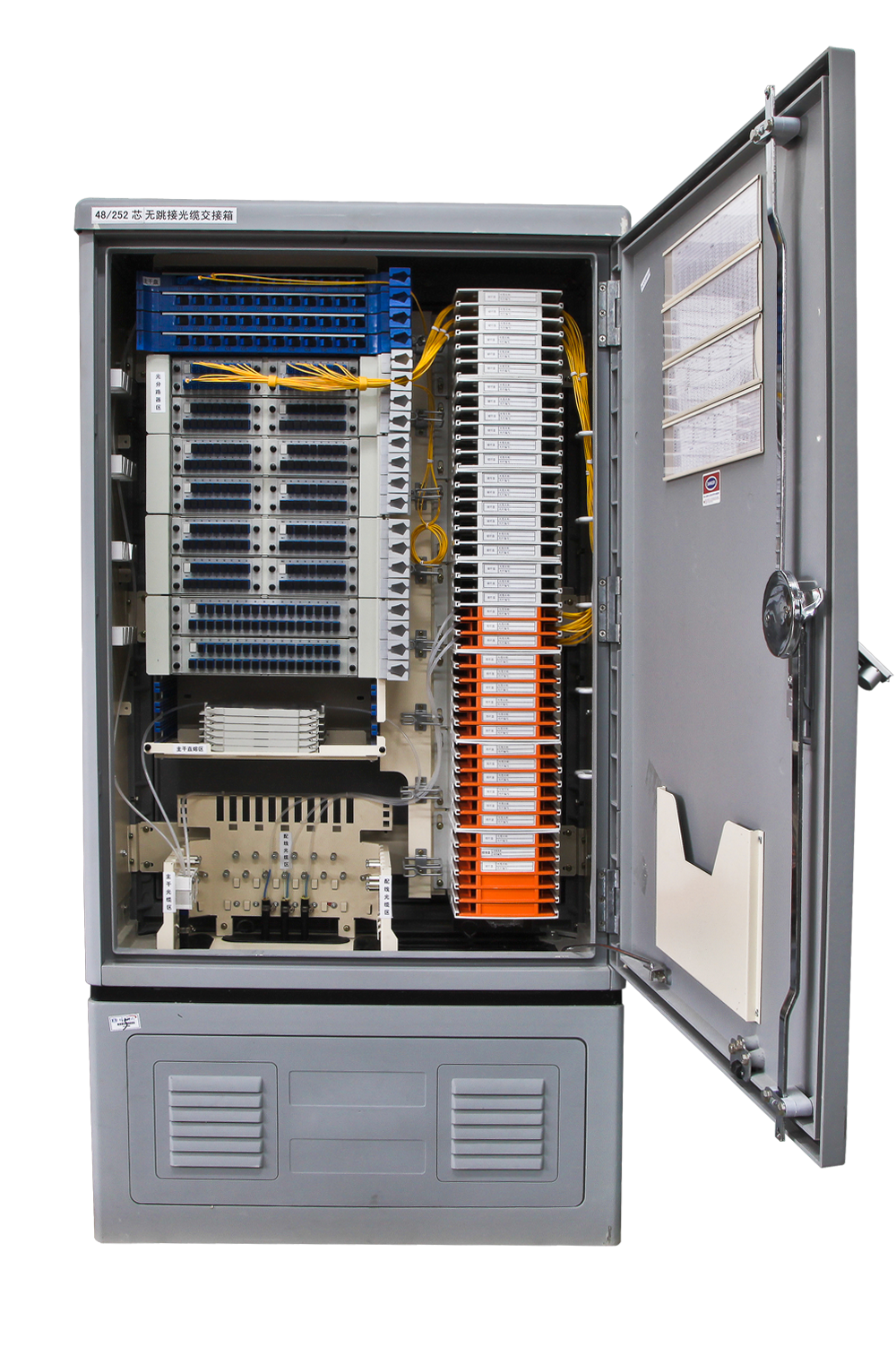

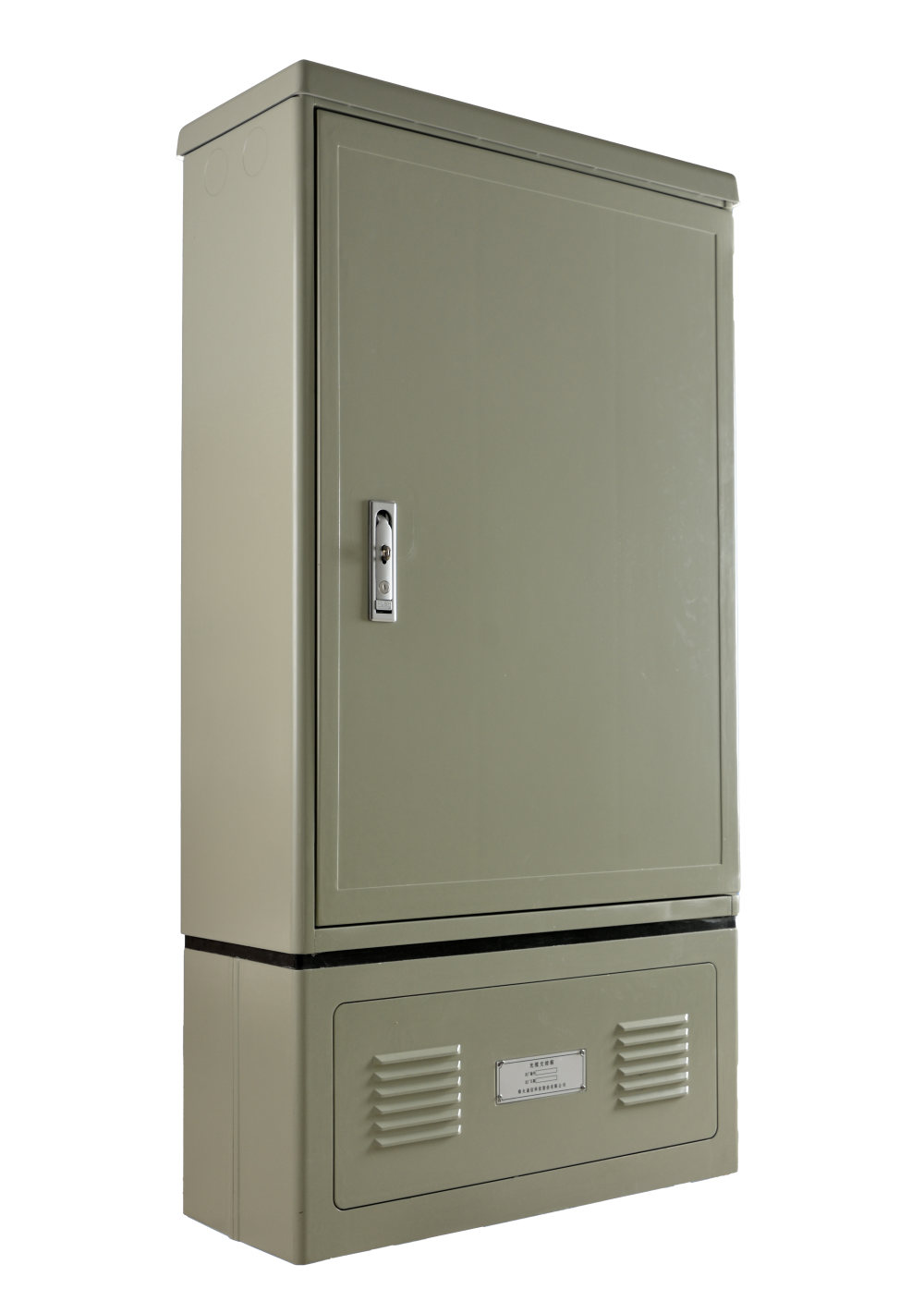

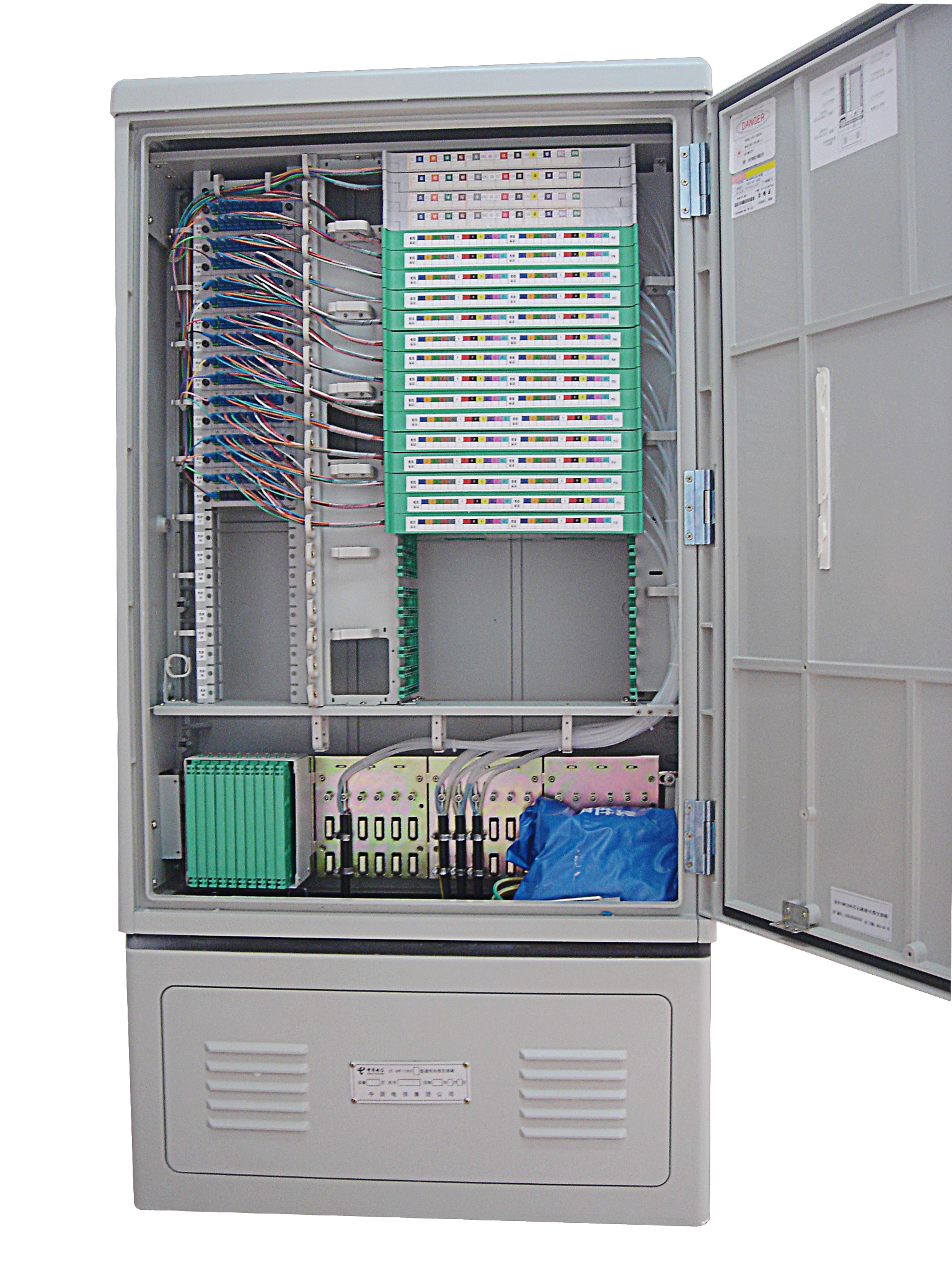

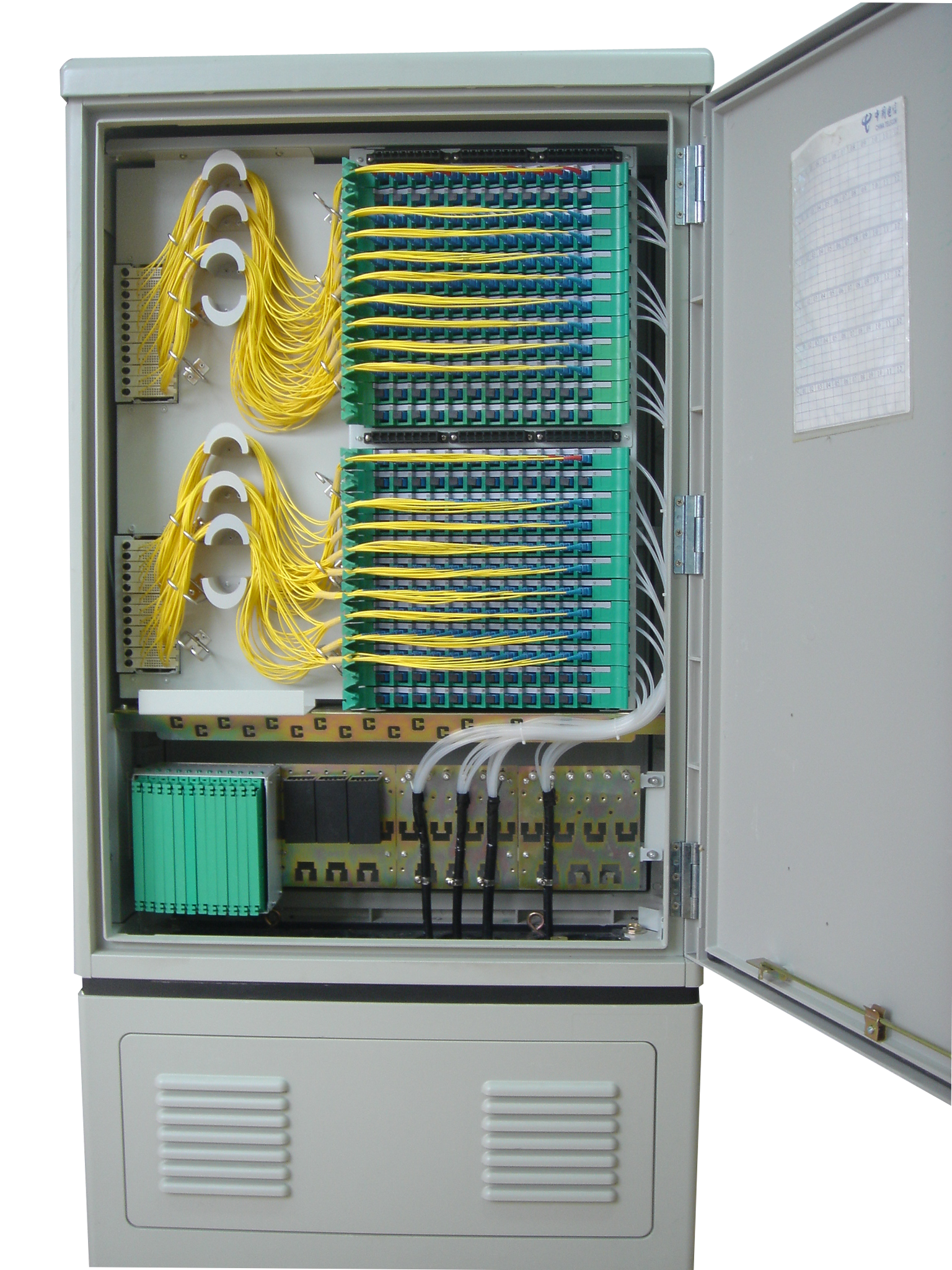

Metal LGX Compatible Fiber Distribution Hub
Overview
Fiber distribution hubs are designed for the outdoor cable branches of ODN, in which optical fiber connection, storage, scheduling, and distribution. They provide a cost-effective, passive connections between fiber optic cable and optical splitters, deployed as Local Convergence Point (LCP) in a centralized split or a distributed split PON architecture with great distribution capacity. It is designed to support LGX splitter modules with compact structure. Easy installation and maintenance are achievable in FTTx network with our fiber distribution hubs.
Key Features
- Stainless steel housing
- Parking port available for easy maintenance
- LGX optical splitter at free combination for different split ratio
- Tray splitters can be selected as required
- IK10 shock resistance
- IP65 protection
- 12-core splicing and termination tray, easily removed
- FC, SC, and LC adapters are compatible, applicable to both ribbon and non-ribbon cables
- Enable to direct splicing and storage in tray for optical fiber
- 35° angle for adaptor, bending radius of fiber exceeds 30 mm
- Reliable cable fixing, stripping, and grounding parts
- Multiple accessories provide protection for optical fiber from mechanical damage
Standards
- Telcordia GR-1209-CORE-2001
- Telcordia GR-1221-CORE-1999
- RoHS
Applications
- Wall Mounted
- Floor Mounted
Specifications
|
Type |
FDH-ML1 |
FDH-ML2 |
FDH-ML3 |
FDH-ML4 |
|
Dimensions (H*W*D, mm) |
790*570*300 |
1345*760*300 |
1345*760*550 |
1345*1450*550 |
|
Distribution Capacity (Core) |
144 |
288 |
576 |
1152 |
|
Direct Splicing Capacity (Core) |
72 |
144 |
288 |
576 |
|
LGX Splitter |
12 |
26 |
52 |
104 |
|
Installation Method |
Wall/Floor Mounted |
Floor Mounted |
||
|
Material |
Metal |
|||
|
Adapter Type |
SC, FC, LC, etc. |
|||
|
Protection Level |
IP65 |
|||
|
Insertion Loss |
≤ 0.3dB |
|||
|
Return Loss |
PC ≥ 45 dB, UPC ≥ 50 dB, APC ≥ 60 dB |
|||
|
Adaptor Durability |
≥ 1,000 times |
|||
|
Operating Environment |
Outdoor |
|||
|
Operating Temperature |
-40℃ to +60℃ |
|||
|
Ambient Humidity |
≤ 95%（+40℃） |
|||
|
Atmospheric Pressure |
70 kPa to 106 kPa |
|||
|
Salt Test |
No corrosion or discoloration of the product after 48-hour test |
|||
|
Insulation Resistance |
≥ 2 x 104 MΩ/500 V (DC) |
|||
|
Withstand Voltage |
≥ 3000 V (DC)/1 min, no arc breakdown, no arcing |
|||
