Duplex Fiber Optic Pigtail
Overview
Fiber Optic Pigtail is simplex or duplex Fiber Optic Cables with different connectors to connect the communication devices, and the connectors include FC, SC, ST, LC, E2000 type etc. Pigtail has connector at one end and needs to be spliced for the other end, and it is used for ODF, Fiber Optic Distribution Box or etc.
We use strict production process to ensure all the products have good environmental and mechanical properties, and all the products meet Telcordia GR-326-CORE and RoHS standard.
Key Features

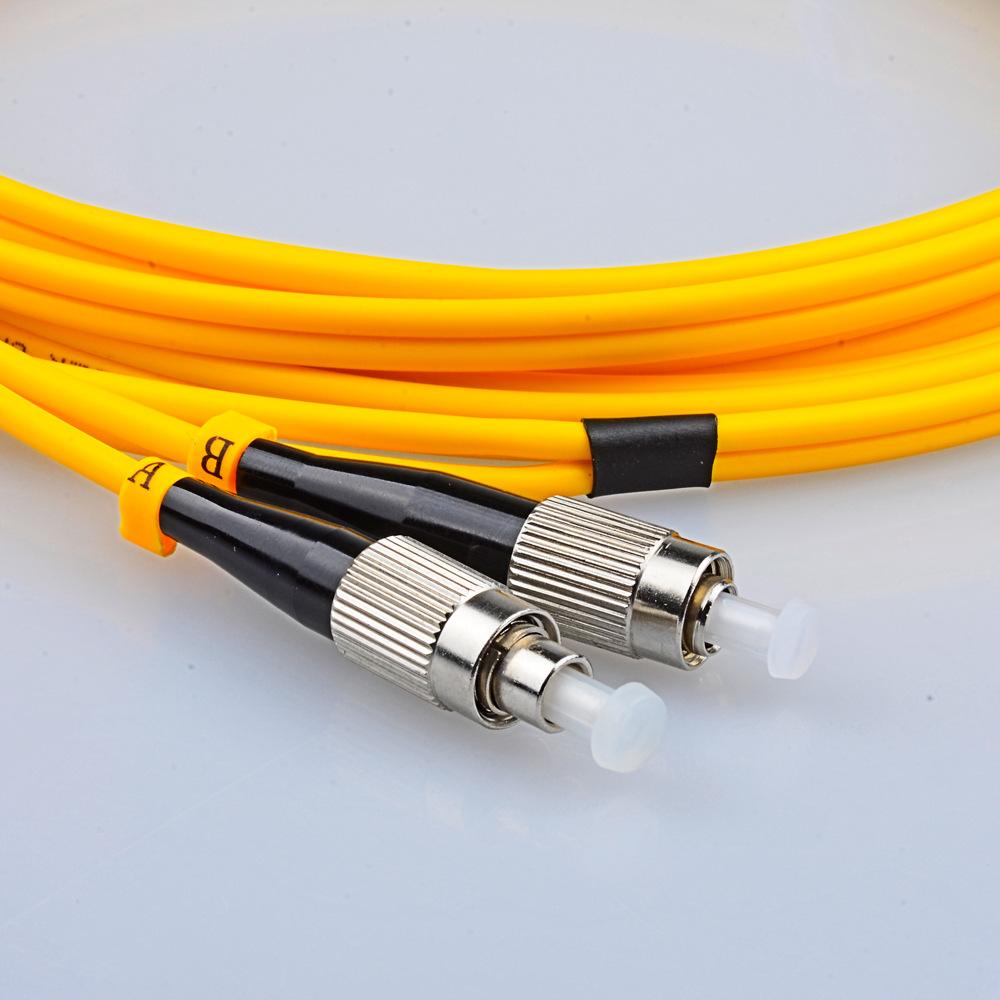

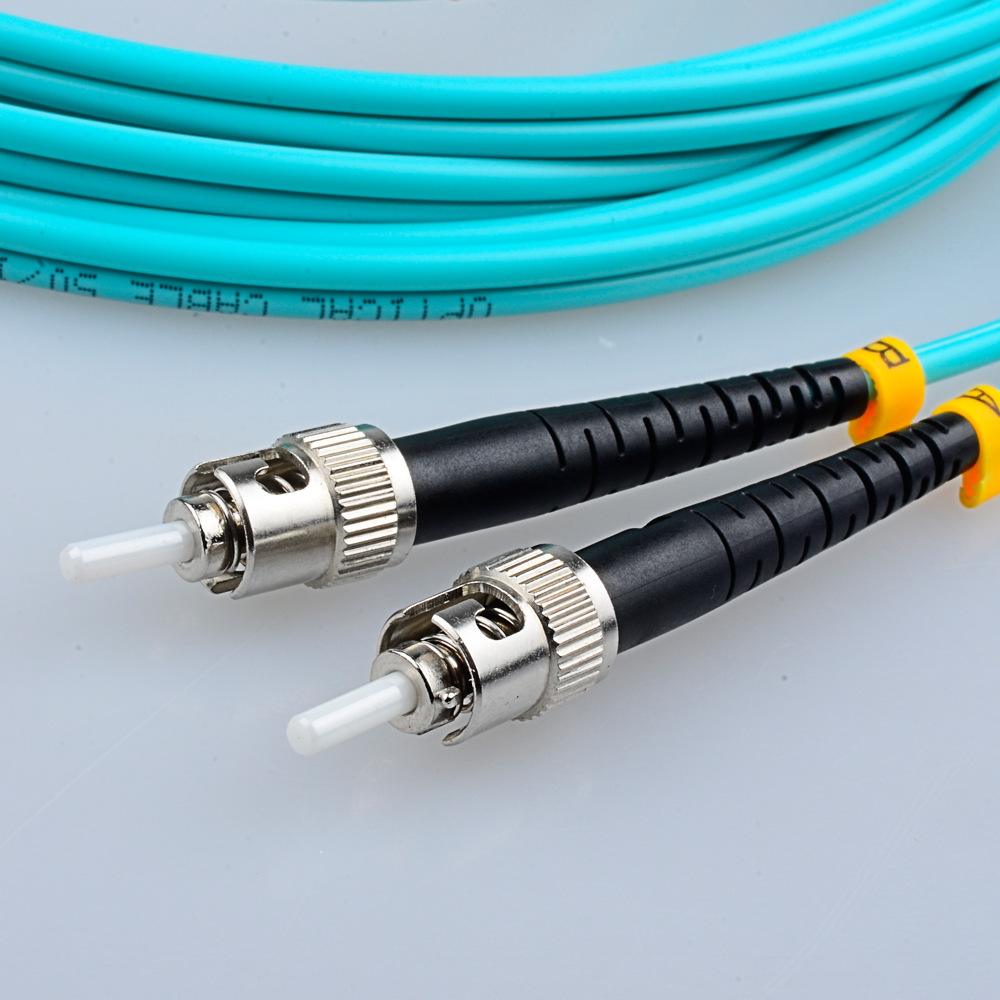

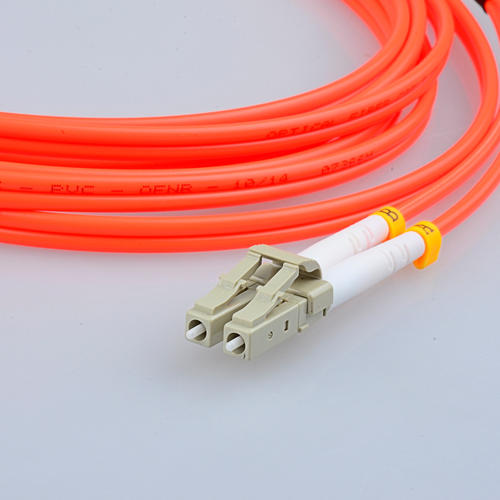

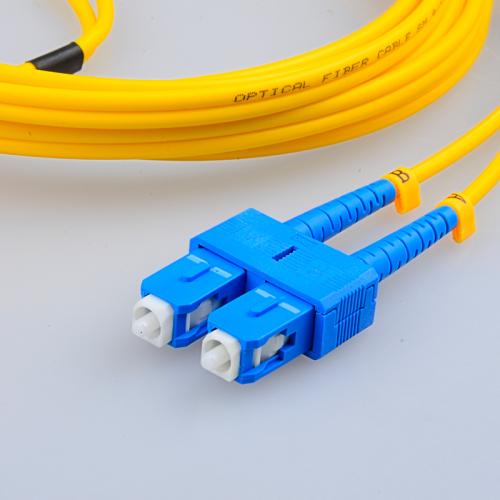

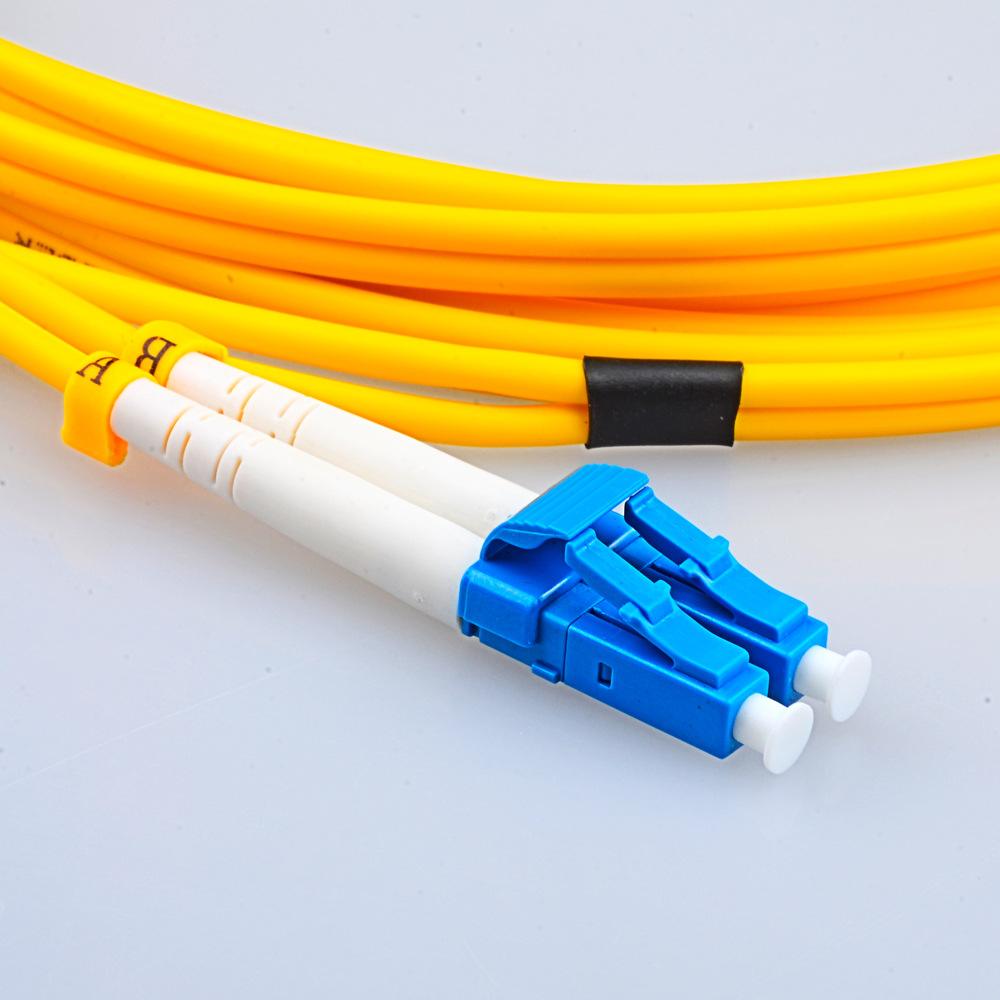

- Different types of Connectors
- Duplex fiber optic cable
- G.652D, G.655, G.657A or G.657B single mode fiber
- 50/125µm, 62.5/125µm, OM2, OM3, OM4 and OM5 multi-mode fiber
- Different color or length of fiber optic cable
Standards
- TIA/EIA 604-5
- IEC 61754
- Telcordia GR-1435-CORE Issue 2
- Telcordia GR-326-CORE Issue 4
Applications
- Infrastructure physical layer connection in data center
- LAN cabling backbone systems
- Backbone connectivity in building and campus
Specifications
Cable Performance
|
Fiber Type |
Core/Cladding Dia. (µm) |
Bandwidth (MHz •km) |
Wavelength (nm) |
Max. Attenuation (dB/km) |
|
G.652D |
9/125 |
NA |
1310/1550 |
0.36/0.22 |
|
G.657A2 |
9/125 |
NA |
1310/1550 |
0.36/0.22 |
|
OM1 |
62.5/125 |
200 |
850/1300 |
3.0/1.0 |
|
OM2 |
50/125 |
500 |
850/1300 |
3.0/1.0 |
|
OM3 |
50/125 |
2000 |
850/1300 |
3.0/1.0 |
|
OM4 |
50/125 |
4700 |
850/1300 |
3.0/1.0 |
Connector Performance
|
Connector Type |
IL (dB) |
500 times Durability ΔIL (dB) |
Temperature Cycling ΔIL (dB) |
|
SC SM |
≤0.30 |
≤0.20 |
≤0.20 |
|
FC SM |
≤0.30 |
≤0.20 |
≤0.20 |
|
LC SM |
≤0.30 |
≤0.20 |
≤0.20 |
|
ST SM |
≤0.30 |
≤0.20 |
≤0.20 |
|
SC MM |
≤0.30 |
≤0.20 |
≤0.20 |
|
FC MM |
≤0.30 |
≤0.20 |
≤0.20 |
|
LC MM |
≤0.30 |
≤0.20 |
≤0.20 |
|
ST MM |
≤0.30 |
≤0.20 |
≤0.20 |
Mechanical Performance
|
Item |
Specification |
|
Fiber Number |
2 |
|
Cable Type |
Duplex |
|
Operation Temperature (°C) |
-25~+70 |
|
Cable Diameter (mm) |
2.0*4.1 |
|
Tensile Strength (N) |
60 |
