Fiber Horizontal Closure
Overview

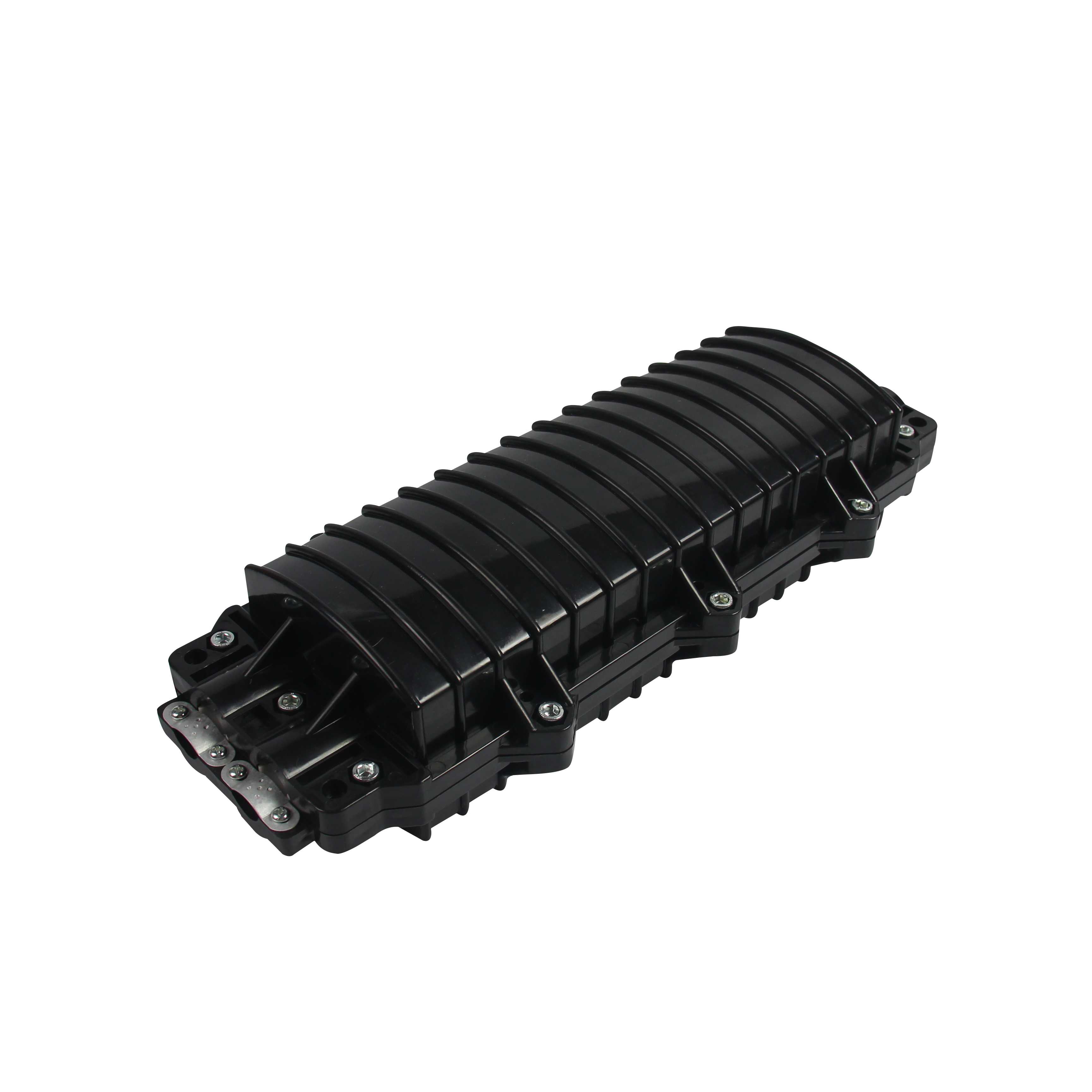

Fiber horizontal closure is a passive device that guarantees cables’ continuity. It consists of a splice closure cap, fixtures, sealing components, and a tray for gathering excess fiber.
Our Fiber Optic Closures have good environmental and mechanical properties, by using strict production technology. And all the products are compliant with Chinese national standards, including YD/T814.1-2004 and YD/T814.2-2005, and international standards, including ITU L.13-2003 and UL 94. They can be used in very harsh environments.
Key Features
- Horizontal structure, mechanical cable sealing
- Made of polymer modified materials, with strong impact resistance and high performance
- With ideal fiber management design
- IP68 protection level
- Suits straight-through, branching, and splicing functions of cables

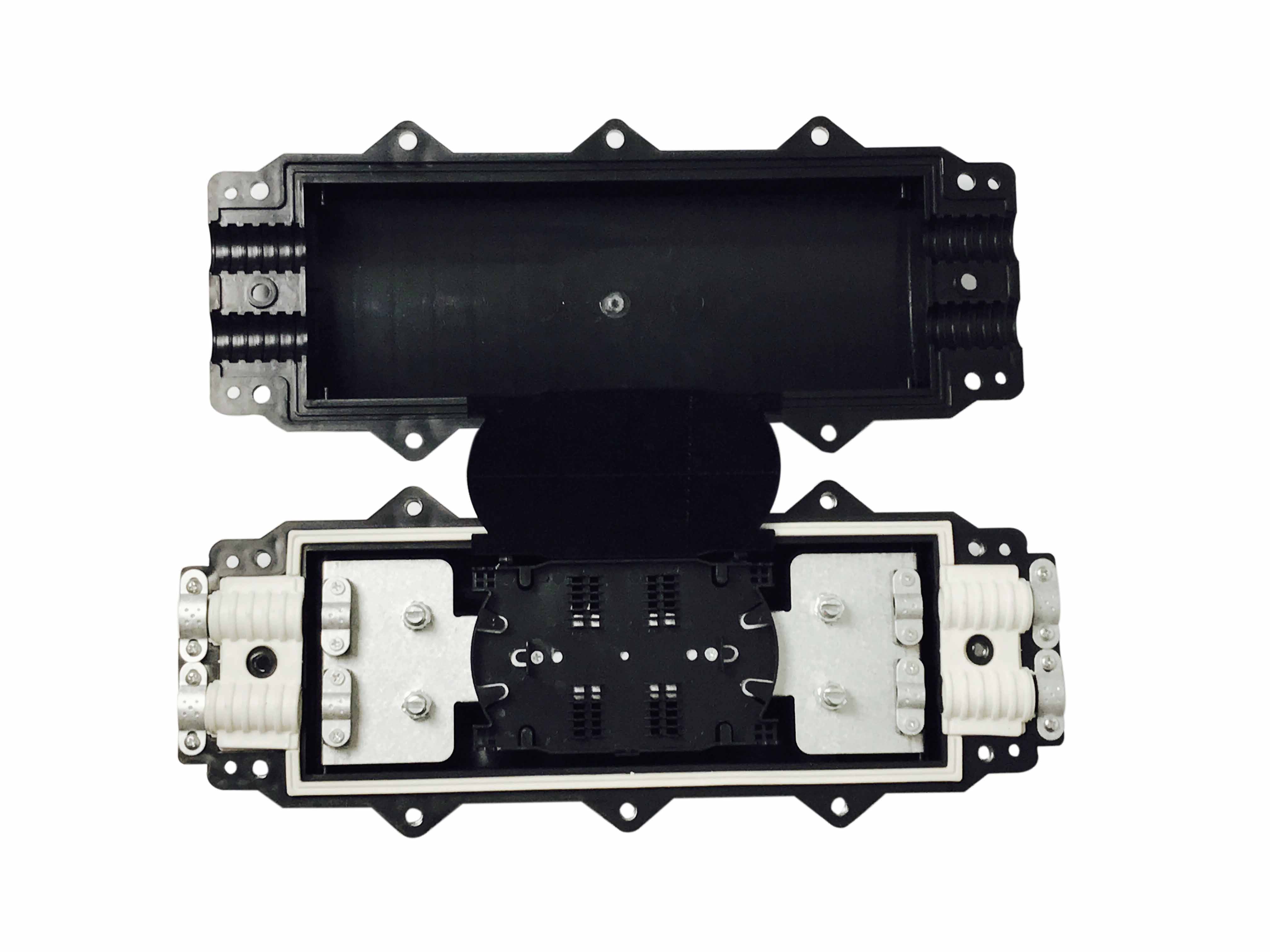

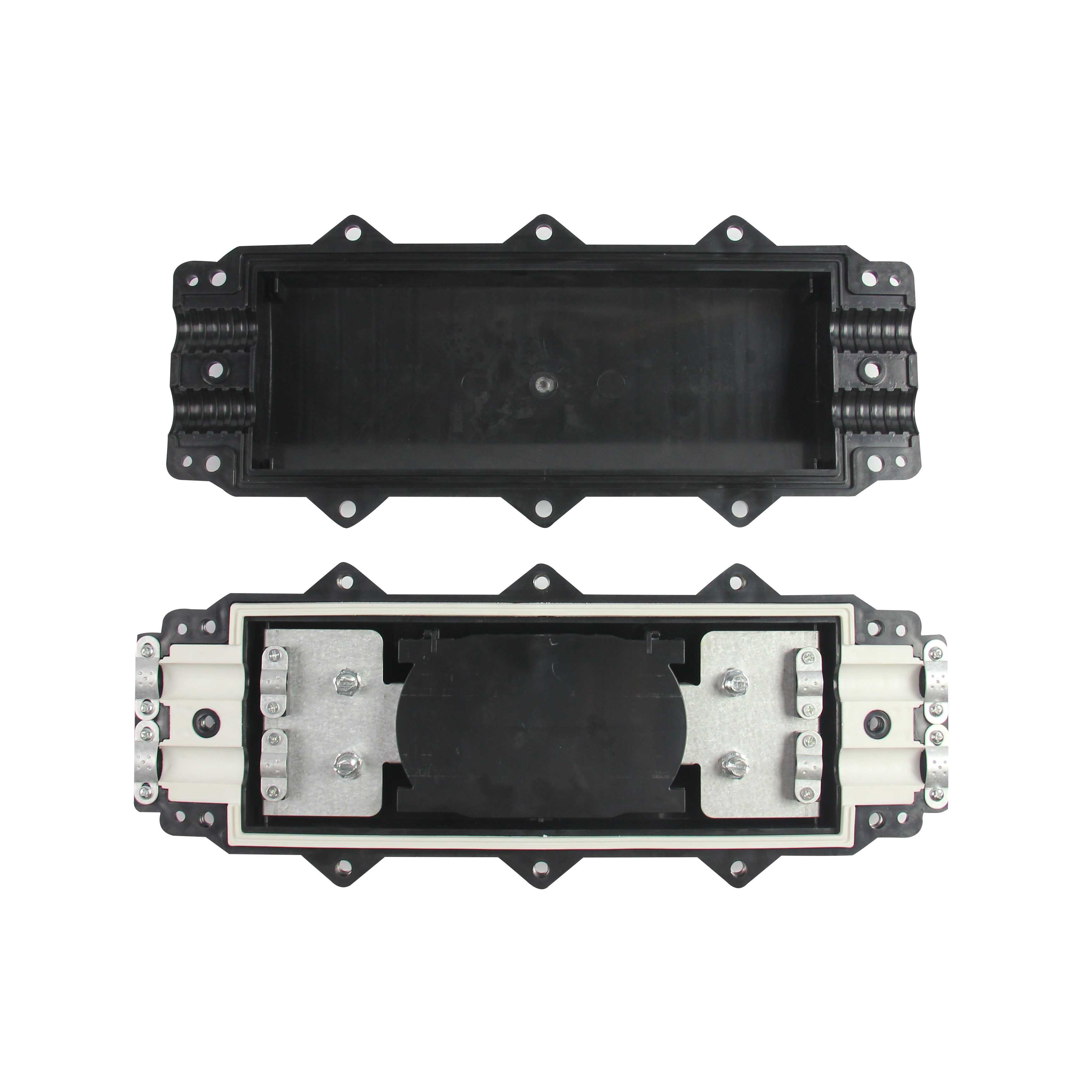

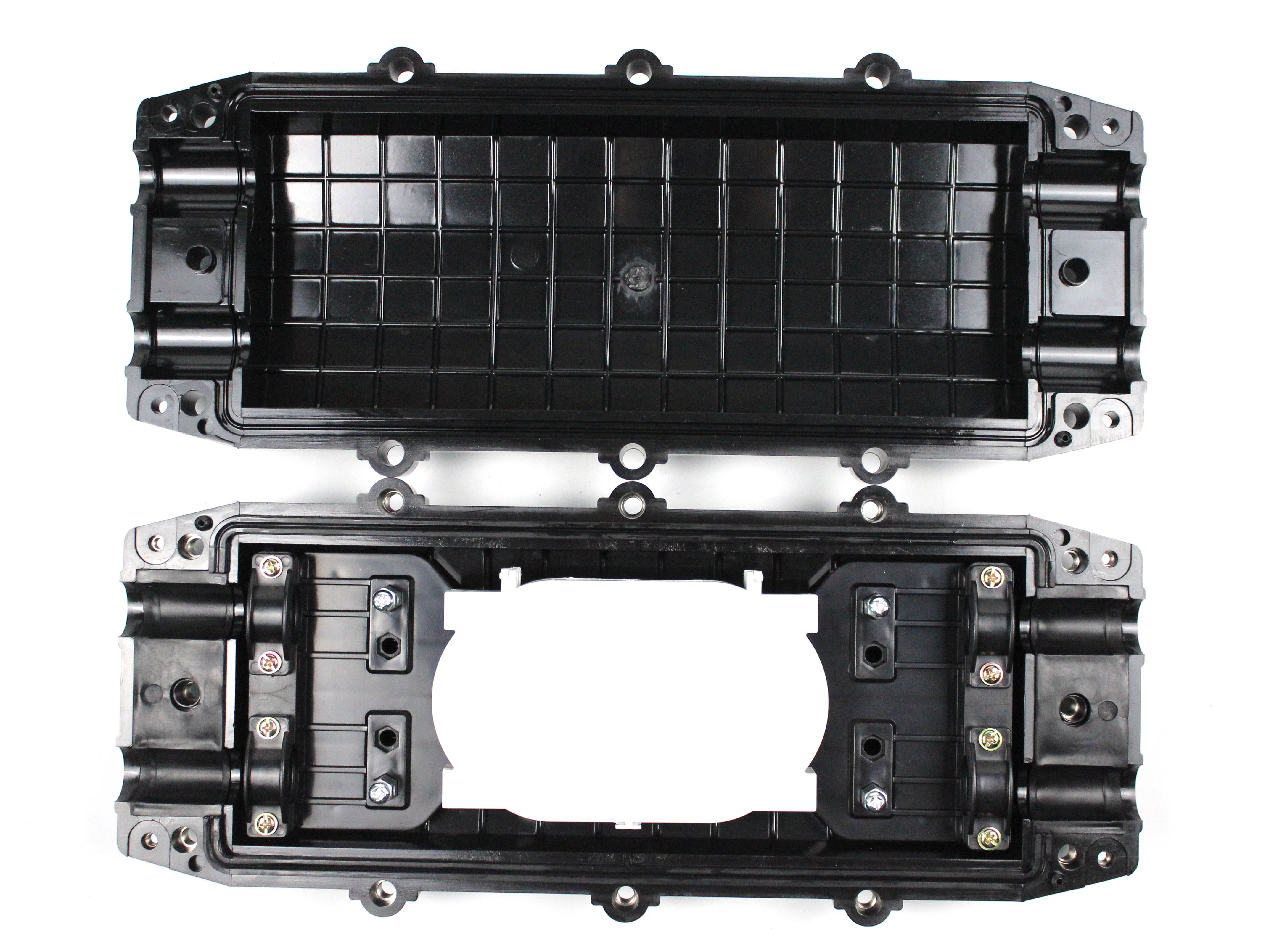

- Built-in stacked and removable splice trays, for easy opening, installation, and maintenance
- Splice trays can be added or removed as required, suited to ribbon or bundle optical fiber
- Proper fiber routing; optical fiber or cable bending radius exceeds 30 mm at all points
Standards
- ITU L.13-2003
- UL 94
- RoHS
Applications
- Aerial
Specifications
|
Item |
FOC-H22-48 |
FOC-H22-96 |
FOC-H33-144 |
||
|
Dimensions (W×D) (Unit: mm) |
435 × 190 |
598 × 285 |
450 × 230 |
||
|
Maximum splice capacity (single core) |
48 |
96 |
144 |
||
|
Type and capacity of splice tray |
24 fibers |
24 fibers |
24 fibers |
||
|
Max number of splice tray |
2 |
4 |
6 |
||
|
Cable Ports |
2 ingress and 2 egress |
2 ingress and 2 egress |
3 ingress and 3 egress |
||
|
Applicable Cable Diameter (mm) |
Branch hole: φ8-16 mm, straight hole: φ8-25 mm |
Branch hole: φ8-22 mm, straight hole: φ8-23 mm |
Branch hole: φ8-18 mm, straight hole: φ8-18 mm |
||
|
Sealing Method |
Mechanical Sealing |
||||
|
Cable entrance |
Type |
Round holes |
|||
|
Quantity |
4 (2 in 2 out) |
6 (3 in 3 out) |
|||
|
Suitable cable diameter (mm) |
Φ10～Φ20 |
||||
|
Temperature range (℃） |
-40~65 |
||||
|
Color |
Black |
||||
